LMH6739 - Low Distortion Triple Video Buffer

Texas Instruments

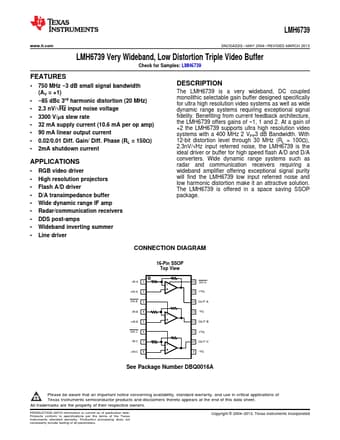

LMH6739 Datasheet Preview — Preview of LMH6739 PDF

Datasheet Details

Part number	LMH6739
Manufacturer	Texas Instruments ↗
File Size	1.26 MB
Description	Low Distortion Triple Video Buffer
Datasheet	LMH6739-etcTI.pdf

LMH6739 Product details

Description

The LMH6739 is a very wideband, DC coupled monolithic selectable gain buffer designed specifically for ultra high resolution video systems as well as wide dynamic range systems requiring exceptional signal fidelity. 1, 1 and 2.

Features

1.
2 750 MHz.
3 dB small signal bandwidth (AV = +1).
85 dBc 3rd harmonic distortion (20 MHz).
2.3 nV/√Hz input noise voltage.
3300 V/μs slew rate.
32 mA supply current (10.6 mA per op amp).
90 mA linear output current.
0.02/0.01 Diff. Gain/ Diff. Phase (RL = 150Ω).
2mA shutdown current.
