MPT57481

240-CHANNEL 61-BIT SOURCE DRIVER

Texas Instruments

MPT57481 General Description

The MPT57481 is a 240-channel output, low-power, 5-V, signal source (column) driver for an active matrix LCD panel. This device has a digital-to-analog converter for each output. The MPT57481 utilizes 10 reference voltages for a 64 gray-scale subpixel output. Eight drivers are required for a 640 × 4.

MPT57481 Datasheet (175.54 KB)

MPT57481 Datasheet Preview — Preview of MPT57481 PDF

Datasheet Details

Part number:

MPT57481

Manufacturer:

Texas Instruments ↗

File Size:

175.54 KB

Description:

240-channel 61-bit source driver.

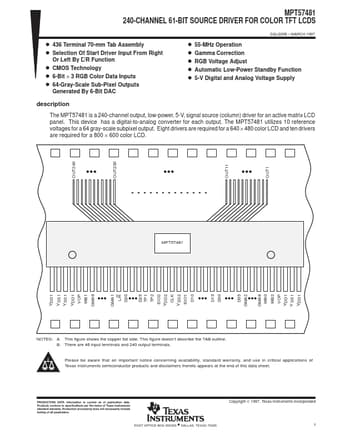

MPT57481 240-CHANNEL 61-BIT SOURCE DRIVER FOR COLOR TFT LCDS D 436 Terminal 70-mm Tab Assembly D Selection Of Start Driver Input From Right Or Left B.
