MPT57216

192-CHANNEL COLOR TFT COLUMN (SOURCE) DRIVER

Texas Instruments

MPT57216 General Description

The MPT57216 is a 192-channel color thin-film transistor (TFT) LCD driver based on an active matrix LCD (AMLCD). It has 3 bits for each RGB input. These 3 bits are decoded internally to select one of eight bias-voltage levels, V0 to V7 for output, in order to support 512 colors (R = 23 = 8; G = 23 =.

MPT57216 Datasheet (156.39 KB)

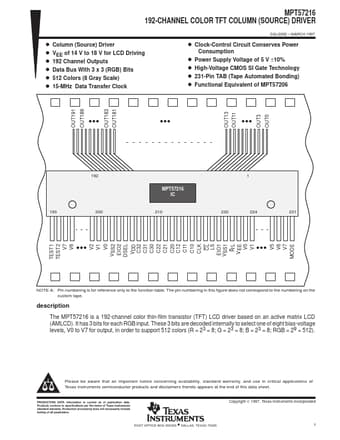

MPT57216 Datasheet Preview — Preview of MPT57216 PDF

Datasheet Details

Part number:

MPT57216

Manufacturer:

Texas Instruments ↗

File Size:

156.39 KB

Description:

192-channel color tft column (source) driver.
MPT57216 192-CHANNEL COLOR TFT COLUMN (SOURCE) DRIVER D Column (Source) Driver D VEE of 14 V to 18 V for LCD Driving D 192 Channel Outputs D Data Bus.
