MPT57571B - 384-CHANNEL 256-GRADATION SOURCE DRIVER

The MPT57571 is a source driver LSI that drives an active-matrix LCD panel, as well as a 256-gradation driver that implements multi-pin configuration and reduced power consumption.

The MPT57571 has 384 panel-drive outputs.

Because it is expandable, the MPT57571 is used in multiple applications, the

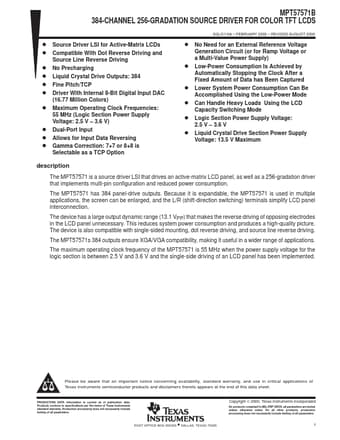

MPT57571B 384-CHANNEL 256-GRADATION SOURCE DRIVER FOR COLOR TFT LCDS D Source Driver LSI for Active-Matrix LCDs D Compatible With Dot Reverse Driving and Source Line Reverse Driving D No Precharging D Liquid Crystal Drive Outputs: 384 D Fine Pitch/TCP D Driver With Internal 8-Bit Digital Input DAC (16.77 Million Colors) D Maximum Operating Clock Frequencies: 55 MHz (Logic Section Power Supply Voltage: 2.5 V 3.6 V) D Dual-Port Input D Allows for Input Data Reversing D Gamma Correction:

MPT57571B-etcTI.pdf

MPT57571B Datasheet Preview — Preview of MPT57571B PDF

Datasheet Details

Part number:

MPT57571B

Manufacturer:

Texas Instruments ↗

File Size:

334.42 KB

Description:

384-channel 256-gradation source driver.
