SN65LVDS93 - LVDS SERDES TRANSMITTER

Texas Instruments

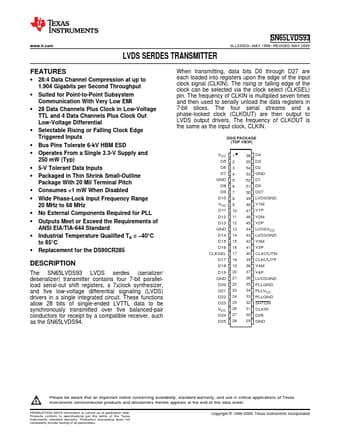

SN65LVDS93 Datasheet Preview — Preview of SN65LVDS93 PDF

Datasheet Details

Part number	SN65LVDS93
Manufacturer	Texas Instruments ↗
File Size	644.34 KB
Description	LVDS SERDES TRANSMITTER
Datasheet	SN65LVDS93-etcTI.pdf

SN65LVDS93 Product details

Description

The SN65LVDS93 LVDS serdes (serializer/ deserializer) transmitter contains four 7-bit parallelload serial-out shift registers, a 7‫נ‬clock synthesizer, and five low-voltage differential signaling (LVDS) drivers in a single integrated circuit.

Features

1.
28:4 Data Channel Compression at up to 1.904 Gigabits per Second Throughput.
Suited for Point-to-Point Subsystem Communication With Very Low EMI.
28 Data Channels Plus Clock in Low-Voltage TTL and 4 Data Channels Plus Clock Out Low-Voltage Differential.
Selectable Rising or Falling Clock Edge Triggered Inputs.
Bus Pins Tolerate 6-kV HBM ESD.
Operates From a Single 3.3-V Supply and 250 mW (Typ).
5-V Tolerant Data Inputs.
P.
