SN65LVDS95 - LVDS SERDES TRANSMITTER

Texas Instruments

SN65LVDS95 Datasheet Preview — Preview of SN65LVDS95 PDF

Datasheet Details

Part number	SN65LVDS95
Manufacturer	Texas Instruments ↗
File Size	473.23 KB
Description	LVDS SERDES TRANSMITTER
Datasheet	SN65LVDS95-etcTI.pdf

SN65LVDS95 Product details

Description

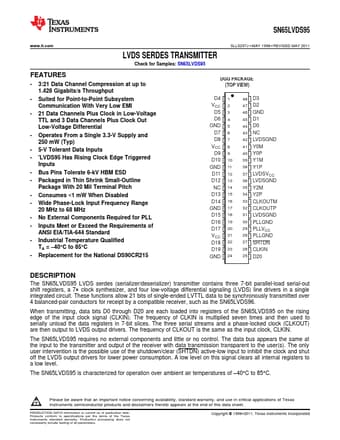

The SN65LVDS95 LVDS serdes (serializer/deserializer) transmitter contains three 7-bit parallel-load serial-out shift registers, a 7× clock synthesizer, and four low-voltage differential signaling (LVDS) line drivers in a single integrated circuit.

Features

1.
3:21 Data Channel Compression at up to 1.428 Gigabits/s Throughput.
Suited for Point-to-Point Subsystem Communication With Very Low EMI.
21 Data Channels Plus Clock in Low-Voltage TTL and 3 Data Channels Plus Clock Out Low-Voltage Differential.
Operates From a Single 3.3-V Supply and 250 mW (Typ).
5-V Tolerant Data Inputs.
'LVDS95 Has Rising Clock Edge Triggered Inputs.
Bus Pins Tolerate 6-kV HBM ESD.
Packaged in Thin Shr.
