SN65LVDS93A - TRANSMITTER

Texas Instruments

SN65LVDS93A Datasheet Preview — Preview of SN65LVDS93A PDF

Datasheet Details

Part number	SN65LVDS93A
Manufacturer	Texas Instruments ↗
File Size	1.92 MB
Description	TRANSMITTER
Datasheet	SN65LVDS93A-etcTI.pdf

SN65LVDS93A Product details

Description

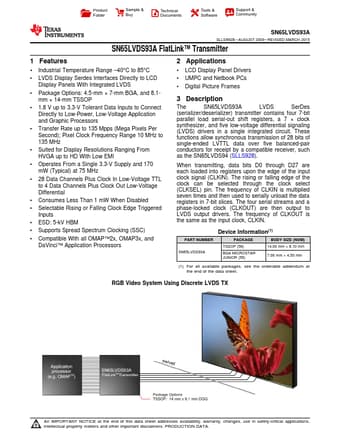

The SN65LVDS93A LVDS SerDes (serializer/deserializer) transmitter contains four 7-bit parallel load serial-out shift registers, a 7 × clock synthesizer, and five low-voltage differential signaling (LVDS) drivers in a single integrated circuit.These functions allow synchronous transmission of 28 bits of single-ended LVTTL data over five balanced-pair conductors for receipt by a compatible receiver, such as the SN65LVDS94 (SLLS928).When transmitting, data bits D0 through D27 are eac

Features

1 Industrial Temperature Range.
40°C to 85°C.
LVDS Display Serdes Interfaces Directly to LCD Display Panels With Integrated LVDS.
Package Options: 4.5-mm × 7-mm BGA, and 8.1mm × 14-mm TSSOP.
1.8 V up to 3.3-V Tolerant Data Inputs to Connect Directly to Low-Power, Low-Voltage.
