SN74ALVCH162244

16-BIT BUFFER/DRIVER

SN74ALVCH162244 Features

* Member of the Texas Instruments Widebus™ Family

* EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process

* Output Ports Have Equivalent 26-Ω Series Resistors, So No External Resistors Are Required

* ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015;

SN74ALVCH162244 General Description

This 16-bit buffer/driver is designed for 1.65-V to 3.6-V VCC operation. The SN74ALVCH162244 is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. SN74ALVCH162244 16-BIT BUFFER/DRIVER WITH 3-STA.

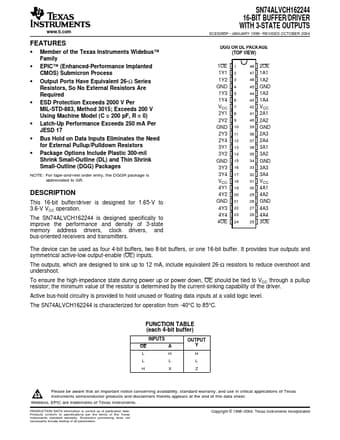

SN74ALVCH162244 Datasheet (1.00 MB)

Preview of SN74ALVCH162244 PDF

Datasheet Details

Part number:

SN74ALVCH162244

Manufacturer:

Texas Instruments ↗

File Size:

1.00 MB

Description:

16-bit buffer/driver.
