SN74ALVCH162334

16-BIT UNIVERSAL BUS DRIVER

SN74ALVCH162334 Features

* Member of the Texas Instruments Widebus™ Family

* EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process

* Output Port Has Equivalent 26-Ω Series Resistors, So No External Resistors Are Required

* Designed to Comply With JEDEC 168-Pin and 200-Pin SDRAM Buffer

SN74ALVCH162334 General Description

This 16-bit universal bus driver is designed for 1.65-V to 3.6-V VCC operation. SN74ALVCH162334 16-BIT UNIVERSAL BUS DRIVER WITH 3-STATE OUTPUTS SCES120H

* JULY 1997

* REVISED SEPTEMBER 2004 DGG, DGV, OR DL PACKAGE (TOP VIEW) OE 1 Y1 2 Y2 3 GND 4 Y3 5 Y4 6 VCC 7 Y5 8 Y6 9 GND 10 Y.

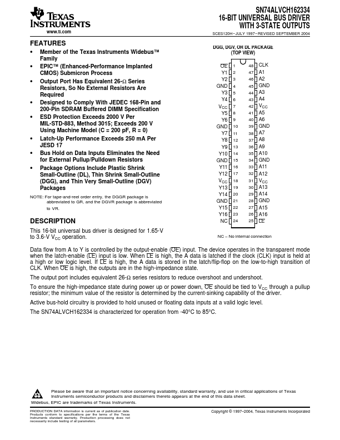

SN74ALVCH162334 Datasheet (527.41 KB)

Preview of SN74ALVCH162334 PDF

Datasheet Details

Part number:

SN74ALVCH162334

Manufacturer:

Texas Instruments ↗

File Size:

527.41 KB

Description:

16-bit universal bus driver.
