SN74ALVCH162268 12-BIT TO 24-BIT REGISTERED BUS EXCHANGER

SN74ALVCH162268 Description

www.ti.com SN74ALVCH162268 12-BIT TO 24-BIT REGISTERED BUS EXCHANGER WITH 3-STATE OUTPUTS SCES018L * AUGUST 1995 * REVISED SEPTEMBER .
ORDERING INFORMATION This 12-bit to 24-bit registered bus exchanger is designed for 1.

SN74ALVCH162268 Features

* Member of the Texas Instruments Widebus™ Family DGG OR DL PACKAGE (TOP VIEW)
* Operates From 1.65 V to 3.6 V
* Max tpd of 4.8 ns at 3.3 V
* ±24-mA Output Drive at 3.3 V
* B-Port Outputs Have Equivalent 26-Ω Series Resistors, So No External Resistors Are Re

SN74ALVCH162268 Applications

* in which data must be transferred from a narrow high-speed bus to a wide, lower-frequency bus. The device provides synchronous data exchange between the two ports. Data is stored in the internal registers on the low-to-high transition of the clock (CLK) input when the appropriate clock-enable (CLKEN

📥 Download Datasheet

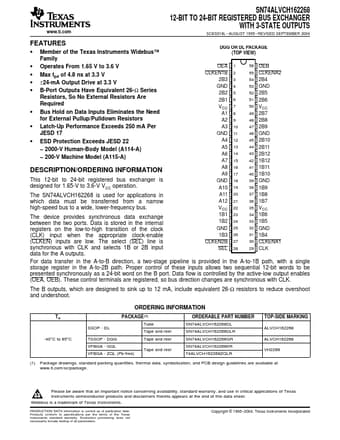

Preview of SN74ALVCH162268 PDF
