SN74ALVCH162344

1-BIT TO 4-BIT ADDRESS DRIVER

SN74ALVCH162344 Features

* Member of the Texas Instruments Widebus™ Family

* Operates From 1.65 V to 3.6 V

* Max tpd of 4.4 ns at 3.3 V

* ±12-mA Output Drive at 3.3 V

* Output Ports Have Equivalent 26-Ω Series Resistors, So No External Resistors Are Required

* Bus Hold on Data

SN74ALVCH162344 General Description

ORDERING INFORMATION This 1-bit to 4-bit address driver is designed for 1.65-V to 3.6-V VCC operation. The SN74ALVCH162344 is used in applications in which four separate memory locations must be addressed by a single address. The outputs, which are designed to sink up to 12 mA, include equivalent 26.

SN74ALVCH162344 Datasheet (1.08 MB)

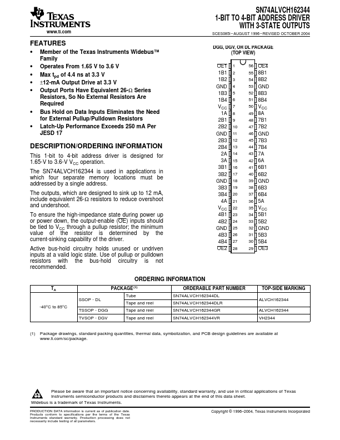

Preview of SN74ALVCH162344 PDF
