SN74ALVCH162260

12-BIT TO 24-BIT MULTIPLEXED D-TYPE LATCH

SN74ALVCH162260 Features

* Member of the Texas Instruments Widebus™ Family

* EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process

* B-Port Outputs Have Equivalent 26-Ω Series Resistors, So No External Resistors Are Required

* ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015

SN74ALVCH162260 General Description

This 12-bit to 24-bit multiplexed D-type latch is designed for 1.65-V to 3.6-V VCC operation. The SN74ALVCH162260 is used in applications in which two separate data paths must be multiplexed onto, or demultiplexed from, a single data path. Typical applications include multiplexing and/or demultiplex.

SN74ALVCH162260 Datasheet (1.11 MB)

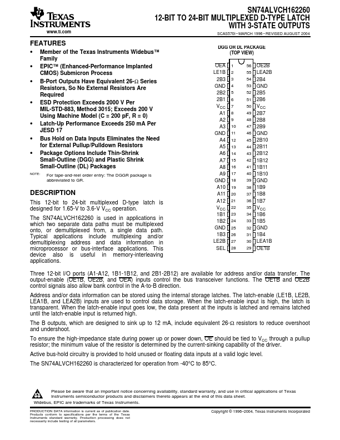

Preview of SN74ALVCH162260 PDF

Datasheet Details

Part number:

SN74ALVCH162260

Manufacturer:

Texas Instruments ↗

File Size:

1.11 MB

Description:

12-bit to 24-bit multiplexed d-type latch.
www.ti.com SN74ALVCH162260 12-BIT TO 24-BIT MULTIPLEXED D-TYPE LATCH WITH 3-STATE OUTPUTS SCAS570I

* MARCH 1996

* REVISED AUGUST 2004.
