SN75207BN Datasheet - Texas Instruments

DUAL SENSE AMPLIFIER

SN75207BN Features

* a TTL-compatible, active-pullup output. Input protection diodes are in series with the collectors of the differential-input transistors of the SN75207B. These diodes are useful in certain party-line systems that may have multiple VCC + power supplies and may be operated with some of the VCC + suppli

SN75207BN General Description

The SN75207B is a terminal-for-terminal replacement for the SN75107B. The improved input sensitivity makes it more suitable for MOS memory sense amplifiers and can result in faster memory cycles. Improved sensitivity also makes it more useful in line-receiver applications by allowing use of longer t.

SN75207BN Datasheet (973.80 KB)

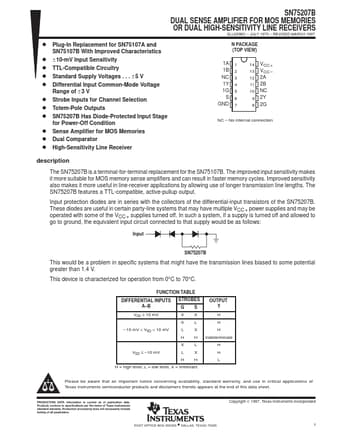

SN75207BN Datasheet Preview — Preview of SN75207BN PDF

Datasheet Details

Part number:

SN75207BN

Manufacturer:

Texas Instruments ↗

File Size:

973.80 KB

Description:

Dual sense amplifier.
SN75207B DUAL SENSE AMPLIFIER FOR MOS MEMORIES OR DUAL HIGH-SENSITIVITY LINE RECEIVERS SLLS096C JULY 1973 REVISED MARCH 1997 D Pl.
