SN75276 Datasheet - Texas Instruments

FAIL-SAFE DIFFERENTIAL BUS TRANSCEIVER

SN75276 Features

* positive- and negative-current limiting and thermal shutdown for protection from line fault conditions. Thermal shutdown is designed to occur at a junction temperature of approximately 150°C. The receiver features a minimum input impedance of 12 kΩ. The SN75276 can be used in transmission line appli

SN75276 General Description

The SN75276 differential bus transceiver is a monolithic, integrated circuit designed for bidirectional data communication on multipoint bus transmission lines. It is designed for balanced transmission lines and is electrically compatible with ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A, and mee.

SN75276 Datasheet (290.79 KB)

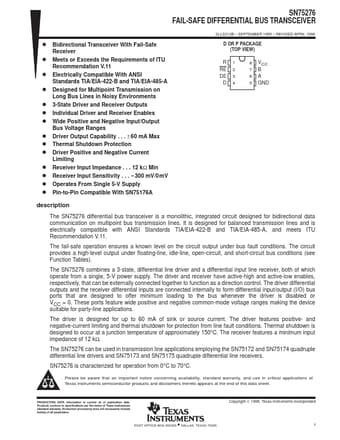

SN75276 Datasheet Preview — Preview of SN75276 PDF

Datasheet Details

Part number:

SN75276

Manufacturer:

Texas Instruments ↗

File Size:

290.79 KB

Description:

Fail-safe differential bus transceiver.
SN75276 FAIL-SAFE DIFFERENTIAL BUS TRANSCEIVER D Bidirectional Transceiver With Fail-Safe Receiver D Meets or Exceeds the Requirements of ITU Recomme.
