SN75240P Datasheet - Texas Instruments

USB Port Transient Suppressors

SN75240P Features

* Design to protect submicron 3-V or 5-V circuits from noise transients

* Port ESD protection capability exceeds:

* 15-kV human body model

* 2-kV machine model

* Available in a WCSP chip-scale package

* Stand-off voltage: 6 V (minimum)

* Low cu

SN75240P General Description

The SN65220 device is a dual, and the SN65240 and SN75240 devices are quadruple, unidirectional transient voltage suppressors (TVS). These devices provide electrical noise transient protection to Universal Serial Bus (USB) low and full-speed ports. The input capacitance of 35 pF makes it unsuitable.

SN75240P Datasheet (1.73 MB)

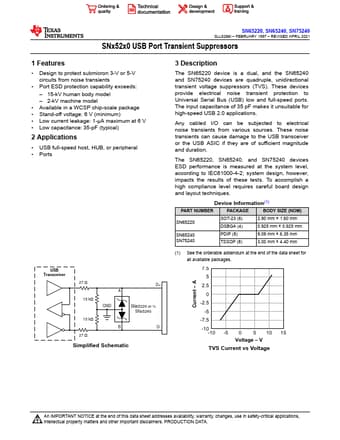

SN75240P Datasheet Preview — Preview of SN75240P PDF

Datasheet Details

Part number:

SN75240P

Manufacturer:

Texas Instruments ↗

File Size:

1.73 MB

Description:

Usb port transient suppressors.
www.ti.com SLLS266I FEBSSRNNU66AR55Y222210099,,7SS NNR66E55V22IS44E00D,, ASSPNNR77IL552220442001 SLLS266I FEBRUARY 1997 <.
