SN75240, SN75220 Datasheet - Texas Instruments

SN75240 USB Port Transient Suppressors

The SN65220 device is a dual, and the SN65240 and SN75240 devices are quadruple, unidirectional transient voltage suppressors (TVS). These devices provide electrical noise transient protection to Universal Serial Bus (USB) low and full-speed ports. The input capacitance of 35 pF makes it unsuitable.

SN75240 Features

* Design to protect submicron 3-V or 5-V circuits from noise transients

* Port ESD protection capability exceeds:

* 15-kV human body model

* 2-kV machine model

* Available in a WCSP chip-scale package

* Stand-off voltage: 6 V (minimum)

* Low cu

SN75220-etcTI.pdf

This datasheet PDF includes multiple part numbers: SN75240, SN75220. Please refer to the document for exact specifications by model.

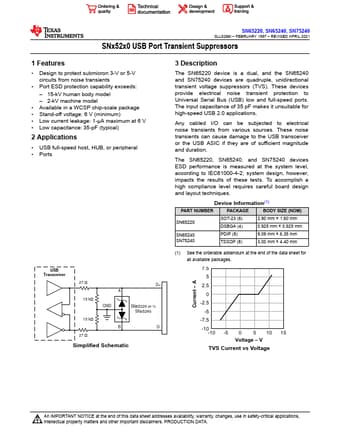

SN75240 Datasheet Preview Page 2 SN75240 Datasheet Preview Page 3

Datasheet Details

Part number:

SN75240, SN75220

Manufacturer:

Texas Instruments ↗

File Size:

1.73 MB

Description:

Usb port transient suppressors.

Note:

This datasheet PDF includes multiple part numbers: SN75240, SN75220.
Please refer to the document for exact specifications by model.
