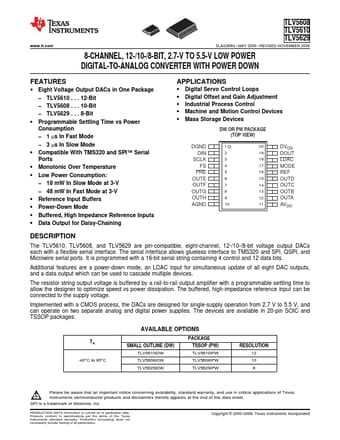

TLV5608 TLV5610 TLV5629 www.ti.com SLAS268G * MAY 2000 * REVISED NOVEMBER 2008 8-CHANNEL, 12-/10-/8-BIT, 2.7-V TO 5.5-V LOW POWER DIGI.
The TLV5610, TLV5608, and TLV5629 are pin-compatible, eight-channel, 12-/10-/8-bit voltage output DACs each with a flexible serial interface.

datasheet Preview Page 1 from Datasheet4u.com

TLV5629-etcTI.pdf

TLV5610 Datasheet Preview — This datasheet PDF includes multiple part numbers: TLV5610, TLV5629. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TLV5610, TLV5629

Manufacturer:

Texas Instruments ↗

File Size:

1.15 MB

Description:

Low Pwr DAC

Note:

This datasheet PDF includes multiple part numbers: TLV5610, TLV5629.
Please refer to the document for exact specifications by model.

Features

* 1
* 2 Eight Voltage Output DACs in One Package
* TLV5610 . . . 12-Bit
* TLV5608 . . . 10-Bit
* TLV5629 . . . 8-Bit
* Programmable Settling Time vs Power Consumption
* 1 µs In Fast Mode
* 3 µs In Slow Mode
* Compatible With TMS320 and SPI

Applications

* Digital Servo Control Loops
* Digital Offset and Gain Adjustment
* Industrial Process Control
* Machine and Motion Control Devices
* Mass Storage Devices DW OR PW PACKAGE (TOP VIEW) DGND 1 DIN 2 SCLK 3 FS 4 PRE 5 OUTE 6 OUTF 7 OUTG 8 OUTH 9
