TPD5E003 - Five-Channel Space-Saving ESD Protection

Texas Instruments

📥 Download Datasheet

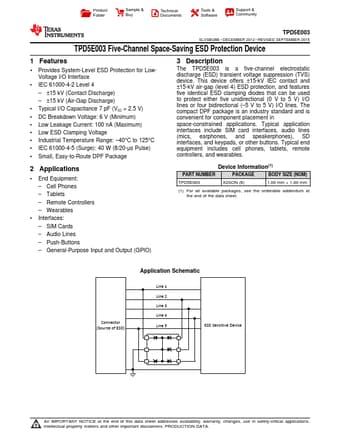

TPD5E003 Datasheet Preview — Preview of TPD5E003 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPD5E003
Manufacturer	Texas Instruments ↗
File Size	1.03 MB
Description	Five-Channel Space-Saving ESD Protection
Datasheet	TPD5E003-etcTI.pdf

TPD5E003 Product details

Description

The TPD5E003 is a five-channel electrostatic discharge (ESD) transient voltage suppression (TVS) device.

Features

1 Provides System-Level ESD Protection for LowVoltage I/O Interface.
IEC 61000-4-2 Level 4.
±15 kV (Contact Discharge).
±15 kV (Air-Gap Discharge).
Typical I/O Capacitance 7 pF (VIO = 2.5 V).
DC Breakdown Voltage: 6 V (Minimum).
Low Leakage Current: 100 nA (Maximum).
Low ESD Clamping Voltage.
Industrial Temperature Range:.
40°C to 125°C.
IEC 61000-4-5 (Surge): 40 W (8/20-µs Pulse).
Small, E.
