TPD5S116 - HDMI Companion

Texas Instruments

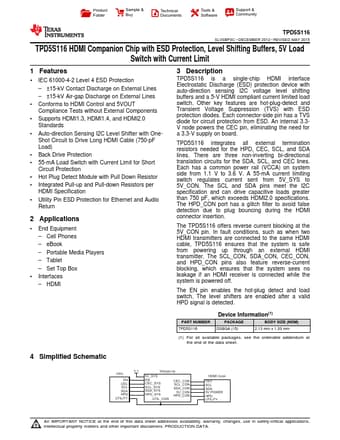

TPD5S116 Datasheet Preview — Preview of TPD5S116 PDF

Datasheet Details

Part number	TPD5S116
Manufacturer	Texas Instruments ↗
File Size	1.70 MB
Description	HDMI Companion
Datasheet	TPD5S116-etcTI.pdf

TPD5S116 Product details

Description

TPD5S116 is a single-chip HDMI interface Electrostatic Discharge (ESD) protection device with auto-direction sensing I2C voltage level shifting buffers and a 5-V HDMI compliant current limited load switch.

Features

1 IEC 61000-4-2 Level 4 ESD Protection.
±15-kV Contact Discharge on External Lines.
±15-kV Air-gap Discharge on External Lines.
Conforms to HDMI Control and 5VOUT Compliance Tests without External Components.
Supports HDMI1.3, HDMI1.4, and HDMI2.0 Standards.
Auto-direction Sensing I2C Level Shifter with OneShot Circuit to Drive Long HDMI Cable (750-pF Load).
Back Drive Protection.
55-mA Load Switch with Current Limit for Sho.
