TPD5S115 - HDMI Companion

Texas Instruments

📥 Download Datasheet

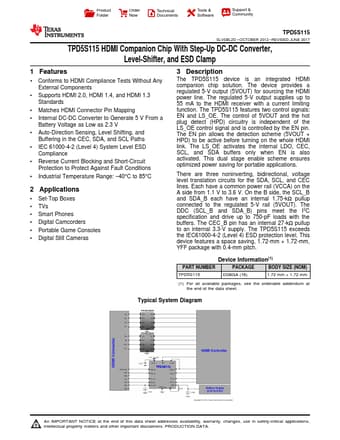

TPD5S115 Datasheet Preview — Preview of TPD5S115 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPD5S115
Manufacturer	Texas Instruments ↗
File Size	1.22 MB
Description	HDMI Companion
Datasheet	TPD5S115-etcTI.pdf

TPD5S115 Product details

Description

The TPD5S115 device is an integrated HDMI companion chip solution.

Features

1 Conforms to HDMI Compliance Tests Without Any External Components.
Supports HDMI 2.0, HDMI 1.4, and HDMI 1.3 Standards.
Matches HDMI Connector Pin Mapping.
Internal DC-DC Converter to Generate 5 V From a Battery Voltage as Low as 2.3 V.
Auto-Direction Sensing, Level Shifting, and Buffering in the CEC, SDA, and SCL Paths.
IEC 61000-4-2 (Level 4) System Level ESD Compliance.
Reverse Current Blocking and Short-Circuit Protection to Pr.
