TPS2410

Full Feaured N+1 and ORing Power Rail Controller

Texas Instruments

TPS2410 Features

* 1 Control external FET for N+1 and ORing

* Wide supply voltage range of 3 V to 16.5 V

* Controls buses from 0.8 V to 16.5 V

* Linear or on/off control method

* Internal charge pump for N-channel MOSFET

* Rapid device turnoff protects bus integrity

TPS2410 General Description

The TPS241x controller, in conjunction with an external N-channel MOSFET, emulates the function of a low forward-voltage diode. The device can be used to combine multiple power supplies to a common bus in an N+1 configuration, or to combine redundant input power buses. The TPS2410 provides a linear .

TPS2410 Datasheet (1.30 MB)

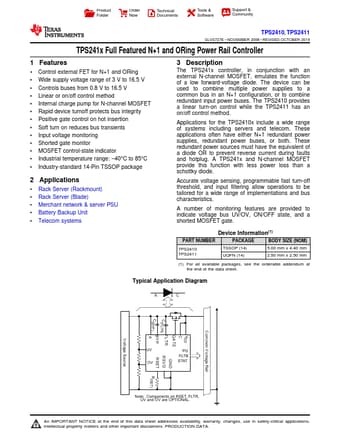

TPS2410 Datasheet Preview — Preview of TPS2410 PDF

Datasheet Details

Part number:

TPS2410

Manufacturer:

Texas Instruments ↗

File Size:

1.30 MB

Description:

Full feaured n+1 and oring power rail controller.
Product Folder Order Now Technical Documents Tools & Software Support & Community TPS2410, TPS2411 SLVS727E

* NOVEMBER 2006

* REV.
