TPS2412 Datasheet - Texas Instruments

N+1 and ORing Power Rail Controller

TPS2412 Features

* 1 Control External FET for N+1 and ORing

* Wide Supply Voltage Range of 3 V to 16.5 V

* Controls Buses From 0.8 V to 16.5 V

* Linear or On/Off Control Method

* Internal Charge Pump for N-Channel MOSFET

* Rapid Device Turnoff Protects Bus Integrity

TPS2412 General Description

The TPS2412/13 controller, in conjunction with an external N-channel MOSFET, emulates the function of a low forward voltage diode. The TPS2412/13 can be used to combine multiple power supplies to a common bus in an N+1 configuration, or to combine redundant input power buses. The TPS2412 provides a .

TPS2412 Datasheet (1.35 MB)

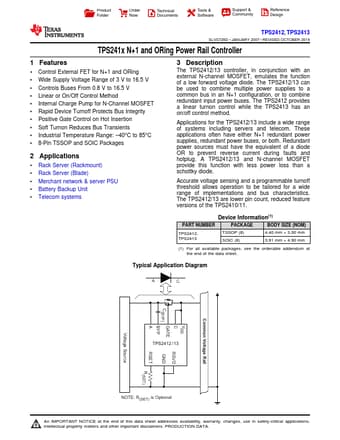

TPS2412 Datasheet Preview — Preview of TPS2412 PDF

Datasheet Details

Part number:

TPS2412

Manufacturer:

Texas Instruments ↗

File Size:

1.35 MB

Description:

N+1 and oring power rail controller.
