* UL recognition file number E320098 Typical IR less than 5.0 µA High surge current capability Low thermal resistance Compliant to RoHS Isolation voltage up to 2500V TYPICAL APPLICATIONS DC power supplies for apparatus device Input rectifying power supplies for PWM converters Field supplies for DC mot
MTP50010 Datasheet (357.44 KB)
MTP50010
nELL
357.44 KB
Three-phase bridge rectifier.

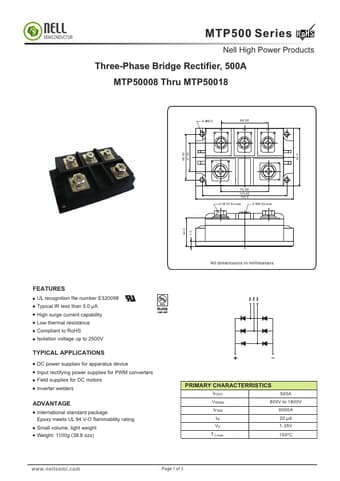

SEMICONDUCTOR MTP500 Series RRooHHSS Nell High Power Products Three-Phase Bridge Rectifier, 500A MTP50008 Thru MTP50018 4-ø6.5 ~ 68.00 ~ ~ 84.0 .
