74AHCT574BQ, 74AHC574 Datasheet - nexperia

74AHCT574BQ Octal D-type flip-flop

The 74AHC574; 74AHCT574 are high-speed Si-gate CMOS devices and are pin compatible with Low Power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74AHC574; 74AHCT574 are octal D-type flip-flops featuring separate D-type inputs for each flip-flop and 3-state outputs .

74AHCT574BQ Features

* I Balanced propagation delays I All inputs have a Schmitt-trigger action I 3-state non-inverting outputs for bus orientated applications I 8-bit positive, edge-triggered register I Independent register and 3-state buffer operation I Common 3-state output enable input I For 74AHC574 only: operates wi

74AHC574-nexperia.pdf

This datasheet PDF includes multiple part numbers: 74AHCT574BQ, 74AHC574. Please refer to the document for exact specifications by model.

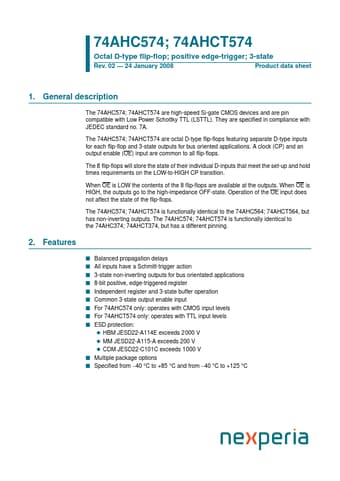

74AHCT574BQ Datasheet Preview Page 2 74AHCT574BQ Datasheet Preview Page 3

Datasheet Details

Part number:

74AHCT574BQ, 74AHC574

Manufacturer:

nexperia ↗

File Size:

631.66 KB

Description:

Octal d-type flip-flop.

Note:

This datasheet PDF includes multiple part numbers: 74AHCT574BQ, 74AHC574.
Please refer to the document for exact specifications by model.
