74AHCT574PW, 74AHC574, Octal D-type flip-flop

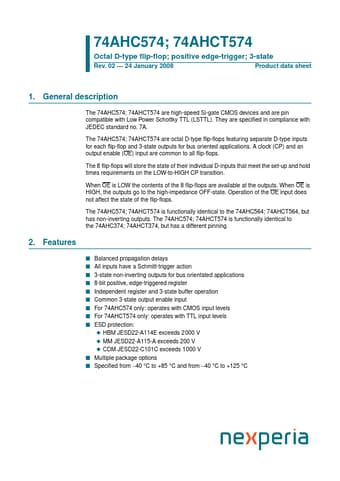

74AHC574; 74AHCT574 Octal D-type ﬂip-ﬂop; positive edge-trigger; 3-state Rev.02 * 24 January 2008 Product data sheet 1.General descripti.
The 74AHC574; 74AHCT574 are high-speed Si-gate CMOS devices and are pin compatible with Low Power Schottky TTL (LSTTL).

datasheet Preview Page 1 from Datasheet4u.com

74AHC574-nexperia.pdf

74AHCT574PW Datasheet Preview — This datasheet PDF includes multiple part numbers: 74AHCT574PW, 74AHC574. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

74AHCT574PW, 74AHC574

Manufacturer:

nexperia ↗

File Size:

631.66 KB

Description:

Octal D-type flip-flop

Note:

This datasheet PDF includes multiple part numbers: 74AHCT574PW, 74AHC574.
Please refer to the document for exact specifications by model.

Applications

* A clock (CP) and an output enable (OE) input are common to all ﬂip-ﬂops. The 8 ﬂip-ﬂops will store the state of their individual D-inputs that meet the set-up and hold times requirements on the LOW-to-HIGH CP transition. When OE is LOW the contents of the 8 ﬂip-ﬂops are available at the outputs. Wh
