74AHCT574 Datasheet - NXP

Octal D-type flip-flop

74AHCT574 Features

* 3-state non-inverting outputs for bus oriented applications

* 8-bit positive, edge-triggered register

* ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V MM EIA/JESD22-A115-A exceeds 200 V

* Independent register and 3-state buffer operation

* Common 3-sta

74AHCT574 General Description

74AHC574; 74AHCT574 The 74AHC/AHCT574 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74AHC/AHCT574 are octal D-type flip-flops featuring separate D-type inputs for each flip-flop and 3.

74AHCT574 Datasheet (91.92 KB)

74AHCT574 Datasheet Preview — Preview of 74AHCT574 PDF

Datasheet Details

Part number:

74AHCT574

Manufacturer:

NXP ↗

File Size:

91.92 KB

Description:

Octal d-type flip-flop.

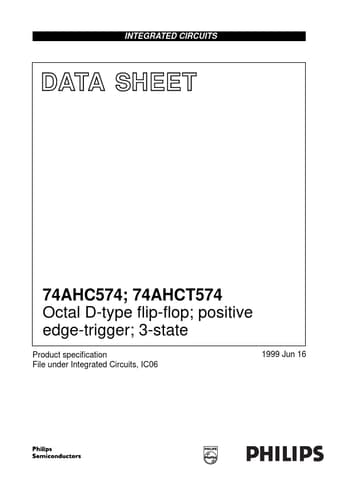

INTEGRATED CIRCUITS DATA SHEET 74AHC574; 74AHCT574 Octal D-type flip-flop; positive edge-trigger; 3-state Product speciﬁcation File under Integrated.
