74HC368 Datasheet, Driver, nexperia

74HC368 Features

  • Driver
  • Wide supply voltage range from 2.0 to 6.0 V
  • Input levels:
  • For 74HC368: CMOS level
  • For 74HCT368: TTL level
  • CMOS low power dissipation

PDF File Details

Part number:

74HC368

Manufacturer:

nexperia ↗

File Size:

239.34kb

Download:

📄 Datasheet

Description:

Hex buffer/line driver. The 74HC368; 74HCT368 is a hex inverting buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE). A HIGH

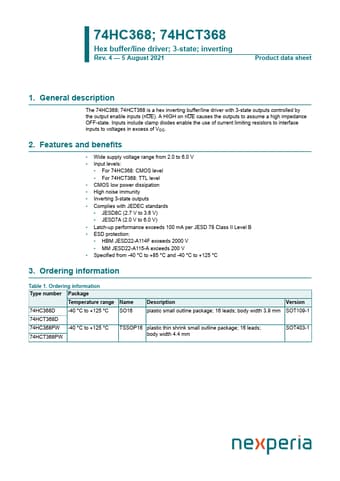

Datasheet Preview: 74HC368 📥 Download PDF (239.34kb)
Page 2 of 74HC368 Page 3 of 74HC368
