74HC368D Hex buffer/line driver

The 74HC368; 74HCT368 is a hex inverting buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE). A HIGH on nOE causes the outputs to assume a high impedance OFF-state. Inputs include clamp diodes enable the use of current limiting resistors to interface inputs to voltag.

74HC368D Features

* Wide supply voltage range from 2.0 to 6.0 V

* Input levels:

* For 74HC368: CMOS level

* For 74HCT368: TTL level

* CMOS low power dissipation

* High noise immunity

* Inverting 3-state outputs

* Complies with JEDEC standards

* J

74HC368-nexperia.pdf

This datasheet PDF includes multiple part numbers: 74HC368D, 74HC368. Please refer to the document for exact specifications by model.

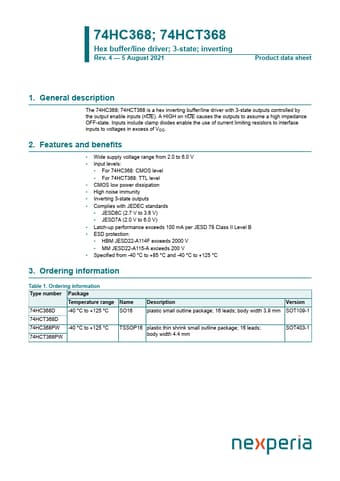

74HC368D Datasheet Preview Page 2 74HC368D Datasheet Preview Page 3
