74HC3G14-Q100

Triple inverting Schmitt trigger

74HC3G14-Q100 Datasheet (236.37 KB)

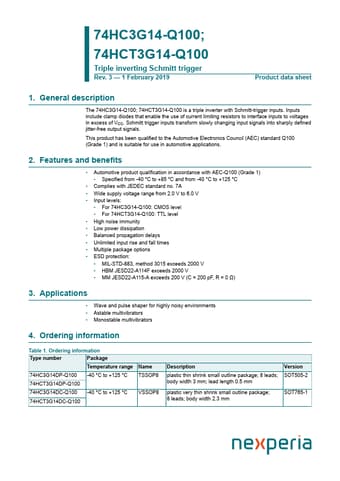

Preview of 74HC3G14-Q100 PDF Datasheet

Datasheet Details

Part number:

74HC3G14-Q100

Manufacturer:

nexperia ↗

File Size:

236.37 KB

Description:

Triple inverting schmitt trigger

74HC3G14-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from -40 °C to +85 °C and from -40 °C to +125 °C

* Complies with JEDEC standard no. 7A

* Wide supply voltage range from 2.0 V to 6.0 V

* Input levels:

* For 74HC3G14-Q

74HC3G14-Q100 General Description

The 74HC3G14-Q100; 74HCT3G14-Q100 is a triple inverter with Schmitt-trigger inputs. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitt.
