74HC3G16 Datasheet, Gate, nexperia

74HC3G16 Features

  • Gate
  • Wide supply voltage range from 2.0 V to 6.0 V
  • CMOS input levels
  • Complies with JEDEC standard no. 7 A
  • Symmetrical output impedance
  • High

PDF File Details

Part number:

74HC3G16

Manufacturer:

nexperia ↗

File Size:

174.08kb

Download:

📄 Datasheet

Description:

Triple buffer gate. The 74HC3G16 is a triple buffer. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs

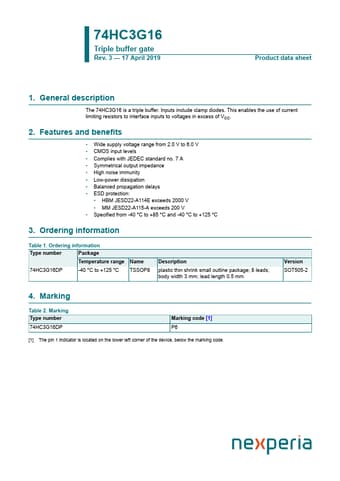

Datasheet Preview: 74HC3G16 📥 Download PDF (174.08kb)
Page 2 of 74HC3G16 Page 3 of 74HC3G16
