74HC3G16DP, 74HC3G16 - Triple buffer gate

nexperia

📥 Download Datasheet

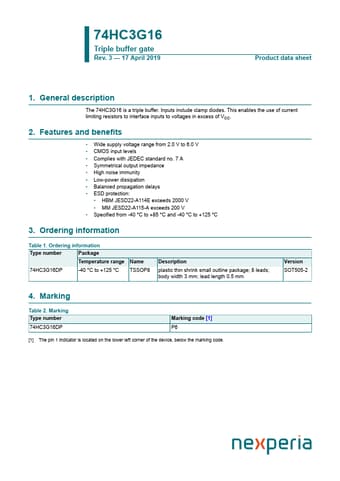

74HC3G16DP Datasheet Preview — This datasheet PDF includes multiple part numbers: 74HC3G16DP, 74HC3G16. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	74HC3G16DP, 74HC3G16
Manufacturer	nexperia ↗
File Size	174.08 KB
Description	Triple buffer gate
Datasheet	74HC3G16-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74HC3G16DP, 74HC3G16. Please refer to the document for exact specifications by model.

74HC3G16DP Product details

Description

The 74HC3G16 is a triple buffer.

Features

Wide supply voltage range from 2.0 V to 6.0 V.
CMOS input levels.
Complies with JEDEC standard no. 7 A.
Symmetrical output impedance.
High noise immunity.
Low-power dissipation.
Balanced propagation delays.
ESD protection:.
HBM JESD22-A114E exceeds 2000 V.
MM JESD22-A115-A exceeds 200 V.
Specified from -40 °C to +85 °C and -40 °C to +125 °C 3. Ordering information Table 1. Ordering information.
