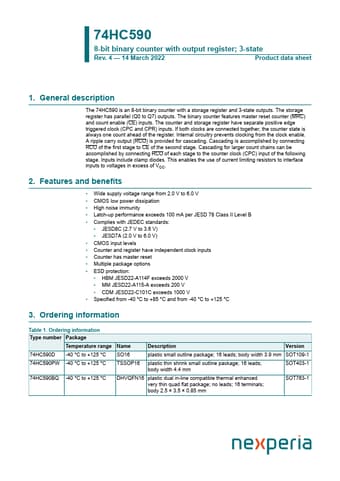

74HC590 Datasheet, counter equivalent, nexperia

74HC590 Features

• Counter
• Wide supply voltage range from 2.0 V to 6.0 V
• CMOS low power dissipation
• High noise immunity
• Latch-up performance exceeds 100 mA per JESD 78 Clas

PDF File Details

Part number:

74HC590

Manufacturer:

nexperia ↗

File Size:

291.10kb

Download:

📄 Datasheet

Description:

8-bit binary counter. The 74HC590 is an 8-bit binary counter with a storage register and 3-state outputs. The storage register has parallel (Q0 to Q7) outp
