BAS116-Q Low-leakage diode

BAS116-Q Description

BAS116-Q Low-leakage diode 17 February 2025 Product data sheet 1.General .
Epitaxial medium-speed switching diode with a low leakage current in a small SOT23 plastic SMD package. Plastic SM.

BAS116-Q Features

* Plastic SMD package
* Low leakage current: typ. 3 pA
* Switching time: typ. 0.8 us
* Continuous reverse voltage: max. 75 V
* Repetitive peak reverse voltage: max. 85 V
* Repetitive peak forward current: max. 500 mA
* Qualified according to AE

BAS116-Q Applications

* 3. Applications
* Low leakage current applications in surface mounted circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IF IR trr VRRM forward current reverse current reverse recovery time repetitive peak reverse voltage tp ≤ 300 µs; δ ≤ 0.02

📥 Download Datasheet

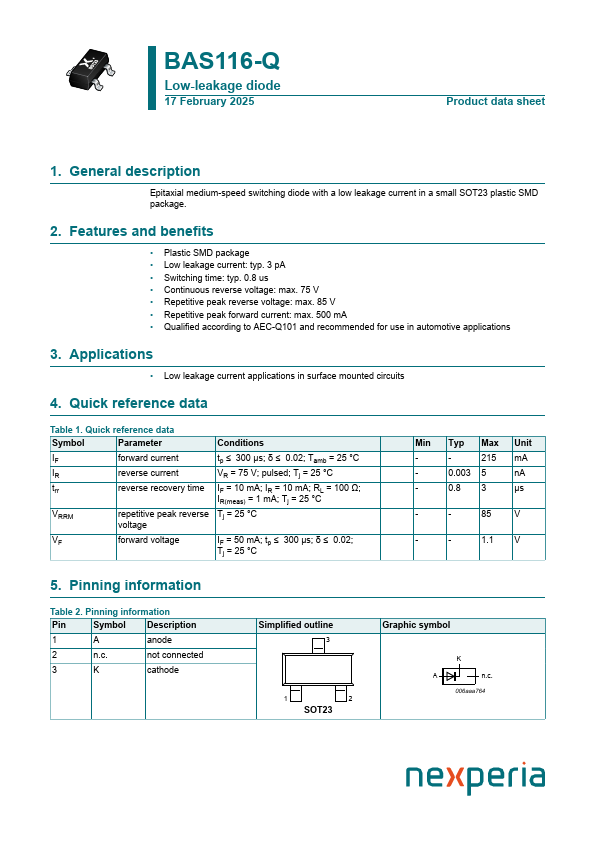

Preview of BAS116-Q PDF

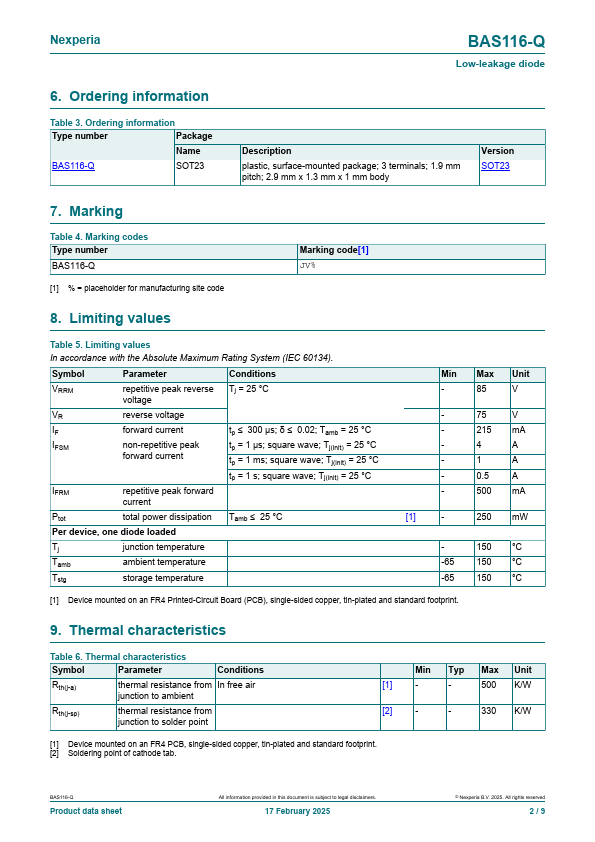

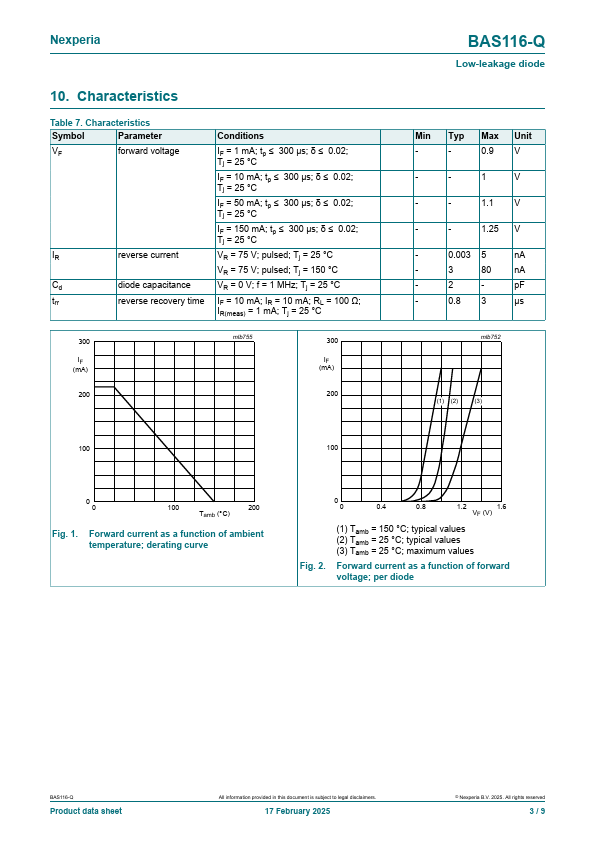

datasheet Preview Page 2 datasheet Preview Page 3
