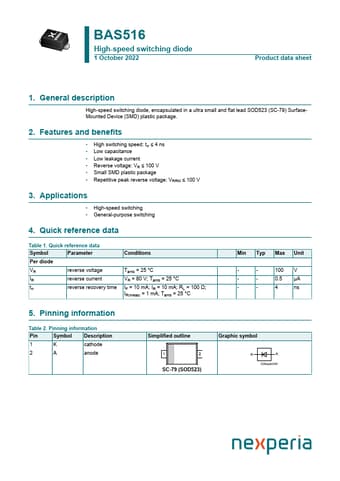

BAS516 Datasheet, Diode, nexperia

BAS516 Features

• Diode
• High switching speed: trr ≤ 4 ns
• Low capacitance
• Low leakage current
• Reverse voltage: VR ≤ 100 V
• Small SMD plastic package
• Re

PDF File Details

Part number:

BAS516

Manufacturer:

nexperia ↗

File Size:

213.51kb

Download:

📄 Datasheet

Description:

High-speed switching diode. High-speed switching diode, encapsulated in a ultra small and flat lead SOD523 (SC-79) SurfaceMounted Device (SMD) plastic package.

BAS516 Application

• Applications
• High-speed switching
• General-purpose switching 4. Quick reference data Table 1. Quick reference data Symbol Par
