BF822-Q - NPN high voltage transistor

BF822-Q Description

BF822-Q NPN high voltage transistor 13 December 2022 Product data sheet 1.General .
NPN high-voltage transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package.

BF822-Q Features

* Low current (max. 50 mA)
* High voltage (max. 300 V)

BF822-Q Applications

* 3. Applications
* Telephony and professional communication equipment 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCBO collector-base voltage VCEO collector-emitter voltage IC collector current hFE DC current gain fT transition frequency Conditions o

📥 Download Datasheet

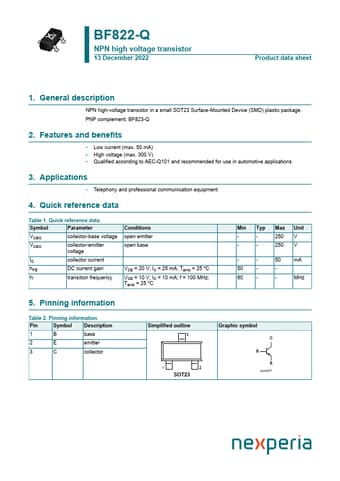

Preview of BF822-Q PDF
datasheet Preview Page 2 datasheet Preview Page 3
