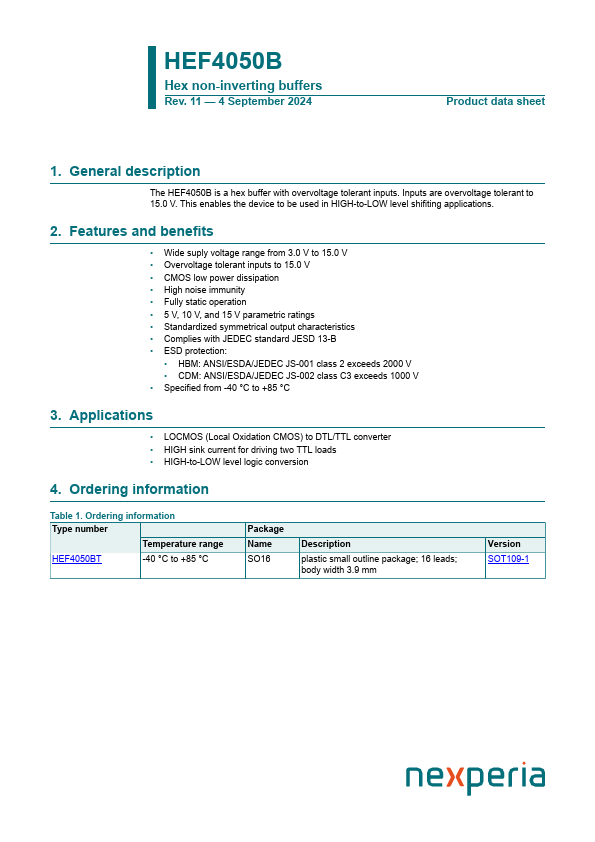

HEF4050B Datasheet, Buffers, nexperia

HEF4050B Features

• Buffers
• Accepts input voltages in excess of the supply voltage
• Fully static operation
• 5 V, 10 V, and 15 V parametric ratings
• Standardized symmetrical out

PDF File Details

Part number:

HEF4050B

Manufacturer:

nexperia ↗

File Size:

698.06kb

Download:

📄 Datasheet

Description:

Hex non-inverting buffers. The HEF4050B provides six non-inverting buffers with high current output capability suitable for driving TTL or high capacitive loads

HEF4050B Application

• Applications
• LOCMOS (Local Oxidation CMOS) to DTL/TTL converter
• HIGH sink current for driving two TTL loads
• HIGH-to-LO
