NEX82016 - Multi-mode digital LLC controller

nexperia

NEX82016 Description

NEX82016 Multi-mode digital LLC controller Rev.1 * 11 July 2025 Product data sheet 1.General .
NEX82016 is a highly integrated and high-performance digital-analog hybrid LLC controller.

NEX82016 Features

* Integrates high-voltage start-up and X-cap discharge functions, with simple peripheral circuits
* Integrates a half-bridge driver, supporting a maximum frequency of 600 kHz
* High-performance digital-analog hybrid control
* Flexible configuration of various control

NEX82016 Applications

* NEX82016 has been optimized to simplify the overall design and maximize LLC performance. Advanced multiple mode control allows for independent configuration of the working status of each mode. Skip mode during light load reduces the switching loss. Adjustable dead time reduces conduction loss. Burs

📥 Download Datasheet

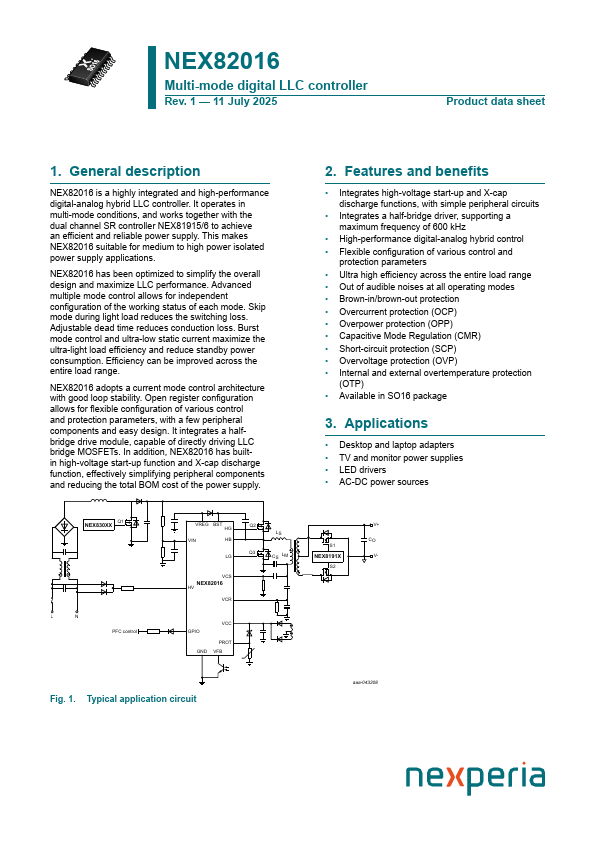

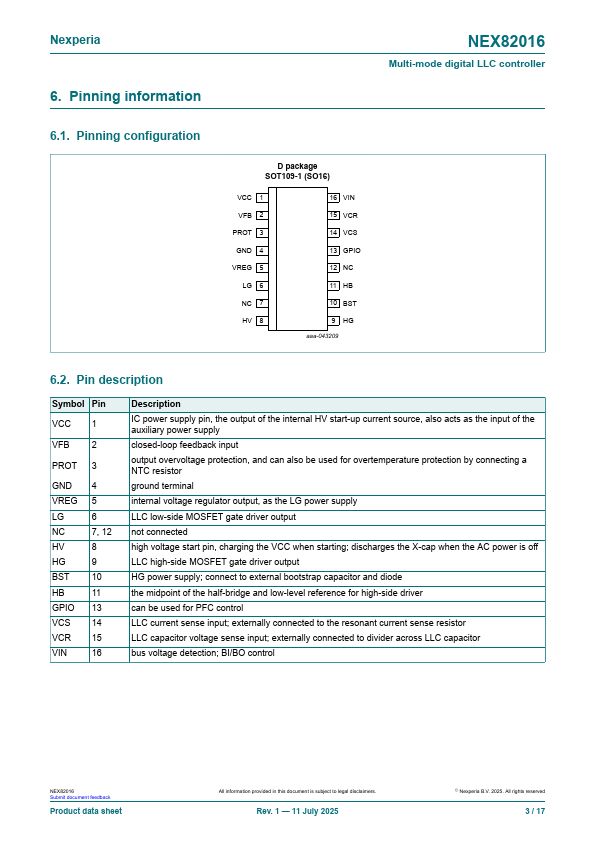

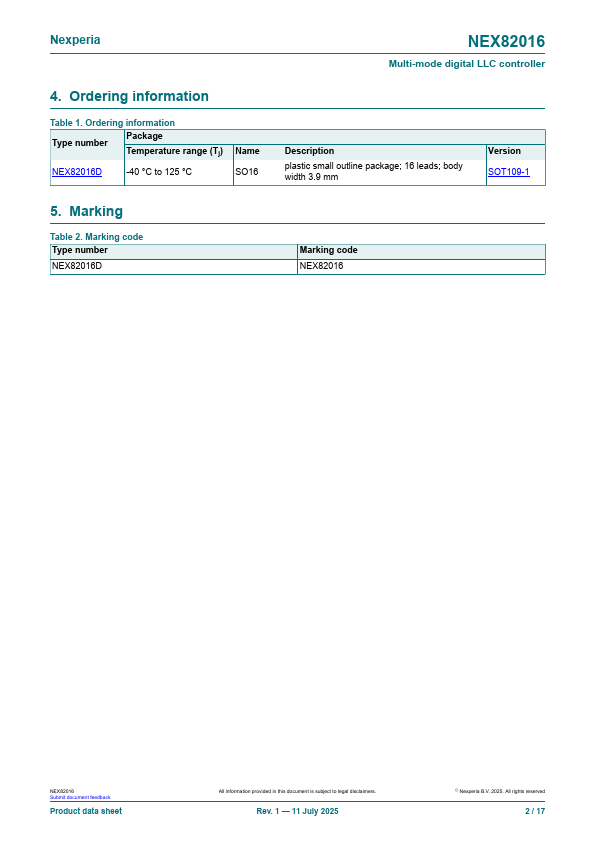

NEX82016 Datasheet Preview — Preview of NEX82016 PDF

Datasheet Details

Part number: NEX82016
Manufacturer: nexperia ↗
File Size: 372.24 KB
Datasheet: NEX82016-nexperia.pdf
Description: Multi-mode digital LLC controller
