PBHV3160Z - PNP Transistor

PBHV3160Z Description

PBHV3160Z 600 V, 0.1 A PNP high-voltage low VCEsat (BISS) transistor 18 August 2014 Product data sheet 1.General .
PNP high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a medium power SOT223 (SC-73) Surface-Mounted Device (SMD) plastic packa.

PBHV3160Z Features

* High voltage
* Low collector-emitter saturation voltage VCEsat
* High collector current capability IC
* High collector current gain hFE at high IC

PBHV3160Z Applications

* Electronic ballast for fluorescent lighting
* LED driver for LED chain module
* LCD backlighting
* HID front lighting
* Automotive motor management
* Hook switch for wired telecom
* Switch Mode Power Supply (SMPS) 4. Quick reference data Ta

📥 Download Datasheet

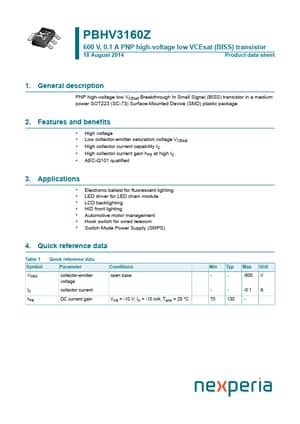

Preview of PBHV3160Z PDF
datasheet Preview Page 2 datasheet Preview Page 3
