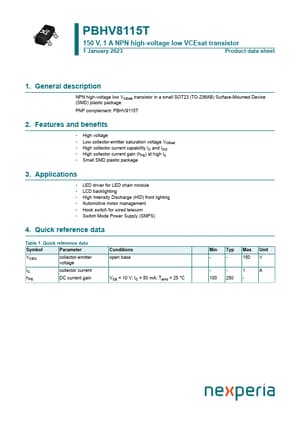

PBHV8115T Datasheet, Transistor, nexperia

PBHV8115T Features

• Transistor
• High voltage
• Low collector-emitter saturation voltage VCEsat
• High collector current capability IC and ICM
• High collector current gain (hFE) at hi

PDF File Details

Part number:

PBHV8115T

Manufacturer:

nexperia ↗

File Size:

279.05kb

Download:

📄 Datasheet

Description:

1a npn high-voltage low vcesat transistor. NPN high-voltage low VCEsat transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. PNP complement: PBHV

PBHV8115T Application

• Applications
• LED driver for LED chain module
• LCD backlighting
• High Intensity Discharge (HID) front lighting
