PBHV2160Z - NPN high-voltage low VCEsat (BISS) transistor

PBHV2160Z Description

SOT223 PBHV2160Z 600 V, 0.1 A NPN high-voltage low VCEsat (BISS) transistor 24 June 2015 Product data sheet 1.General .
NPN high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT223 (SC-73) medium power Surface-Mounted Device (SMD) plastic packa.

PBHV2160Z Features

* Low collector-emitter saturation voltage VCEsat
* High collector current capability

PBHV2160Z Applications

* Electronic ballast for fluorecent lighting
* LED driver for LED chain module
* LCD backlighting
* HID front lighting
* Hook switch for wired telecom
* Switch Mode Power Supply (SMPS) 4. Quick reference data Table 1. Symbol VCEO IC Quick reference

📥 Download Datasheet

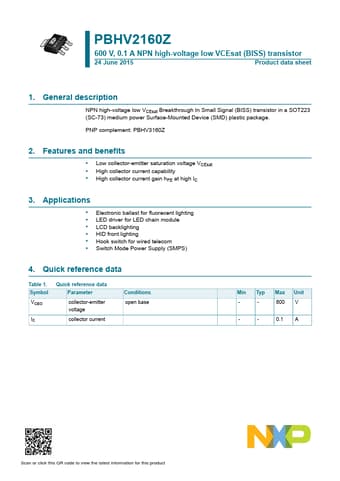

Preview of PBHV2160Z PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PBHV2160Z
Manufacturer
NXP ↗
File Size
195.63 KB
Datasheet
PBHV2160Z-NXP.pdf
Description
NPN high-voltage low VCEsat (BISS) transistor
