PBSS4360X-Q - 60V 3A NPN low VCEsat transistor

nexperia

📥 Download Datasheet

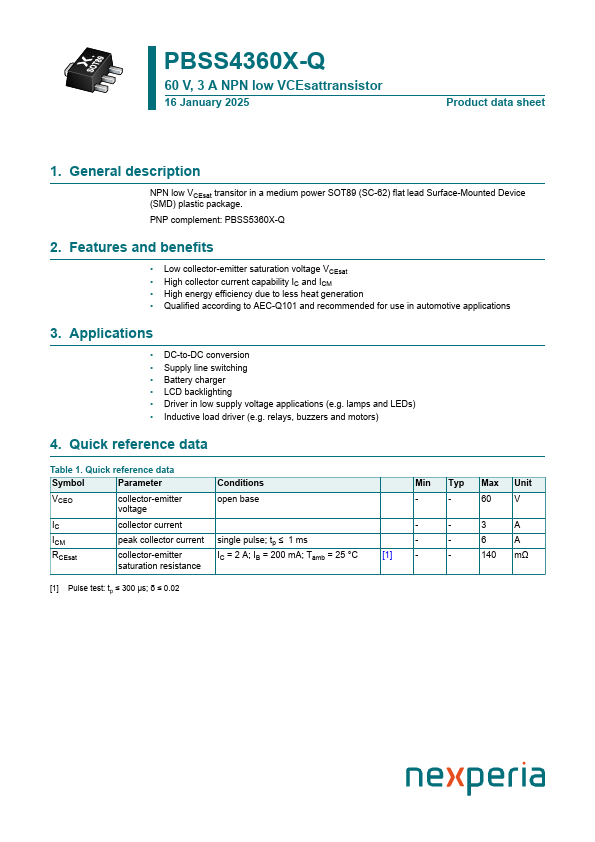

PBSS4360X-Q Datasheet Preview — Preview of PBSS4360X-Q PDF

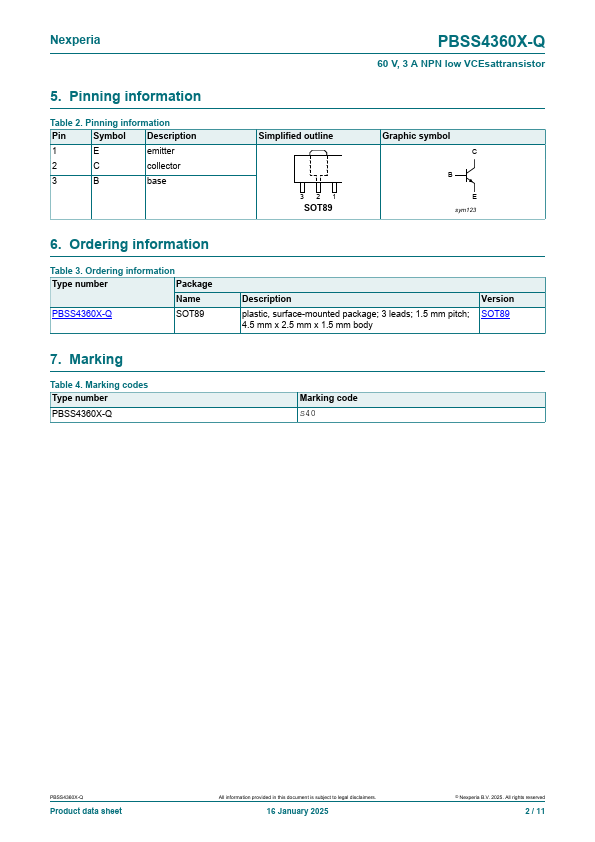

datasheet Preview Page 2

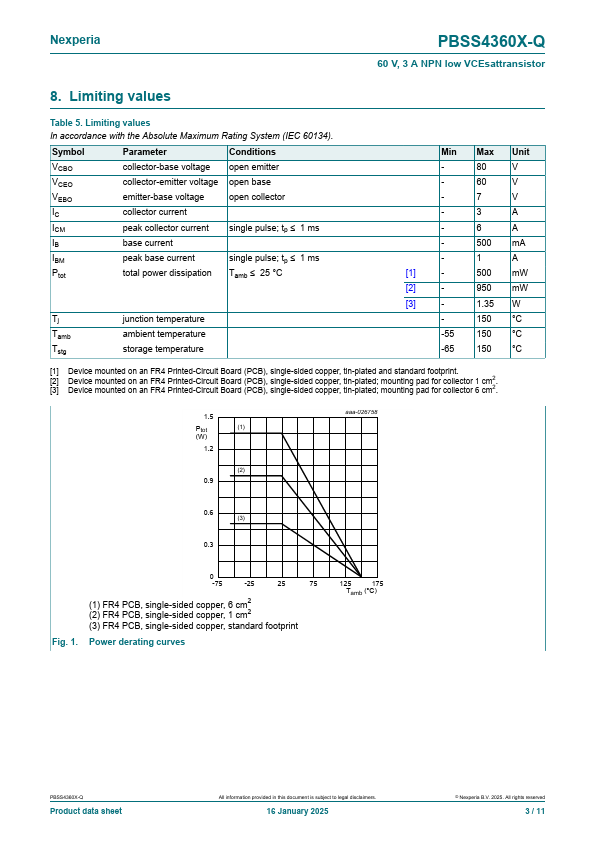

datasheet Preview Page 3

Datasheet Details

Part number	PBSS4360X-Q
Manufacturer	nexperia ↗
File Size	249.81 KB
Description	60V 3A NPN low VCEsat transistor
Datasheet	PBSS4360X-Q-nexperia.pdf

PBSS4360X-Q Product details

Description

NPN low VCEsat transitor in a medium power SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package.

Features

Low collector-emitter saturation voltage VCEsat.
High collector current capability IC and ICM.
High energy efficiency due to less heat generation.
Qualified according to AEC-Q101 and recommended for use in automotive.
