PBSS4350X-Q, 50V 3A NPN low VCEsat transistor

PBSS4350X-Q 50 V, 3 A NPN low VCEsat transistor 31 July 2025 Product data sheet 1.General .
NPN low VCEsat transistor in a small SOT89 Surface-Mounted Device (SMD) plastic package.

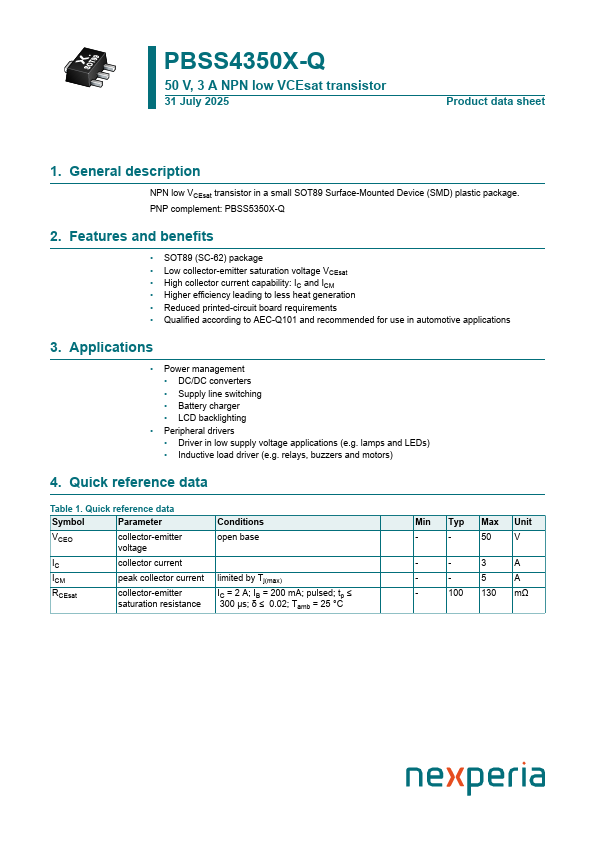

 datasheet Preview Page 1 from Datasheet4u.com

PBSS4350X-Q-nexperia.pdf

Preview of PBSS4350X-Q PDF

Datasheet Details

Part number:

PBSS4350X-Q

Manufacturer:

nexperia ↗

File Size:

270.30 KB

Description:

50V 3A NPN low VCEsat transistor

Features

* SOT89 (SC-62) package
* Low collector-emitter saturation voltage VCEsat
* High collector current capability: IC and ICM
* Higher efficiency leading to less heat generation
* Reduced printed-circuit board requirements
* Qualified according to AEC-Q101

Applications

* 3. Applications
* Power management
* DC/DC converters
* Supply line switching
* Battery charger
* LCD backlighting
* Peripheral drivers
* Driver in low supply voltage applications (e. g. lamps and LEDs)
* Inductive load driver (e. g. rel
