PBSS5240Z-Q - 40V 2A PNP low VCEsat transistor

nexperia

The PBSS5240Z-Q by nexperia is a 40V 2A PNP low VCEsat transistor. Below is the official datasheet preview.

📥 Download Datasheet

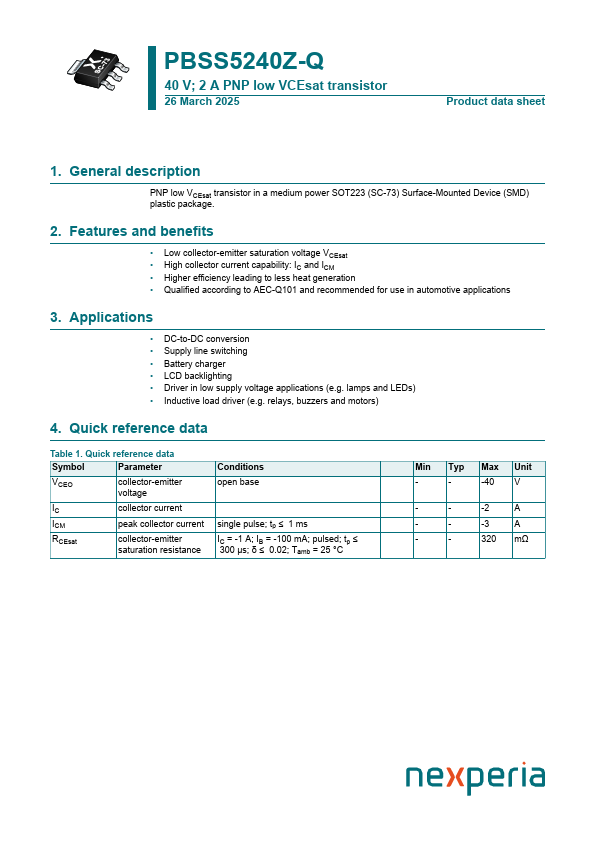

PBSS5240Z-Q 40V 2A PNP low VCEsat transistor by nexperia - Datasheet Preview — Official preview page of the PBSS5240Z-Q 40V 2A PNP low VCEsat transistor datasheet (nexperia).

Datasheet Details

Part number	PBSS5240Z-Q
Manufacturer	nexperia
File Size	248.59 KB
Description	40V 2A PNP low VCEsat transistor
Datasheet	PBSS5240Z-Q-nexperia.pdf

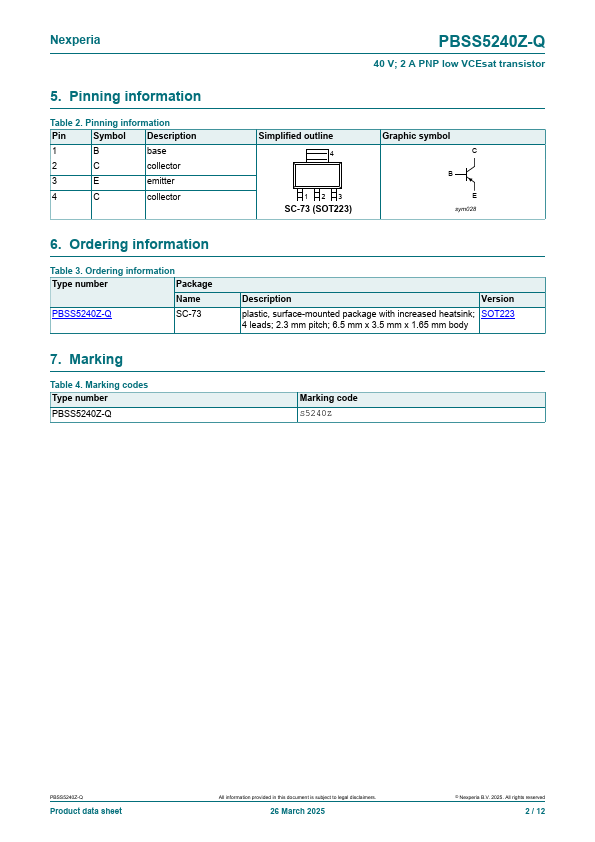

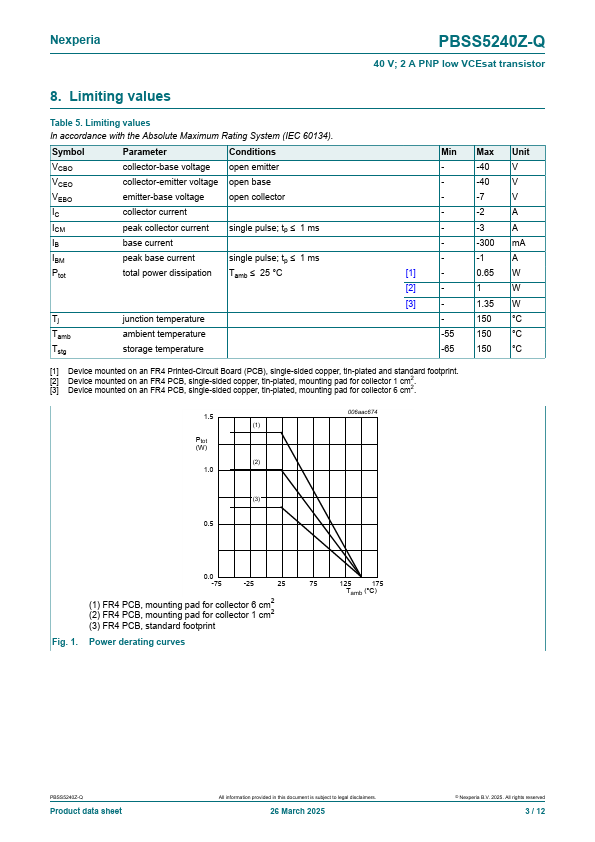

Additional preview pages of the PBSS5240Z-Q datasheet.

PBSS5240Z-Q Product details

Description

PNP low VCEsat transistor in a medium power SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package.

Features

Low collector-emitter saturation voltage VCEsat.
High collector current capability: IC and ICM.
Higher efficiency leading to less heat generation.
Qualified according to AEC-Q101 and recommended for use in automotive.
