PBSS5250X-Q - 50V 2A PNP low VCEsat transistor

nexperia

The PBSS5250X-Q by nexperia is a 50V 2A PNP low VCEsat transistor. Below is the official datasheet preview.

📥 Download Datasheet

PBSS5250X-Q 50V 2A PNP low VCEsat transistor by nexperia - Datasheet Preview — Official preview page of the PBSS5250X-Q 50V 2A PNP low VCEsat transistor datasheet (nexperia).

Datasheet Details

Part number	PBSS5250X-Q
Manufacturer	nexperia
File Size	213.11 KB
Description	50V 2A PNP low VCEsat transistor
Datasheet	PBSS5250X-Q-nexperia.pdf

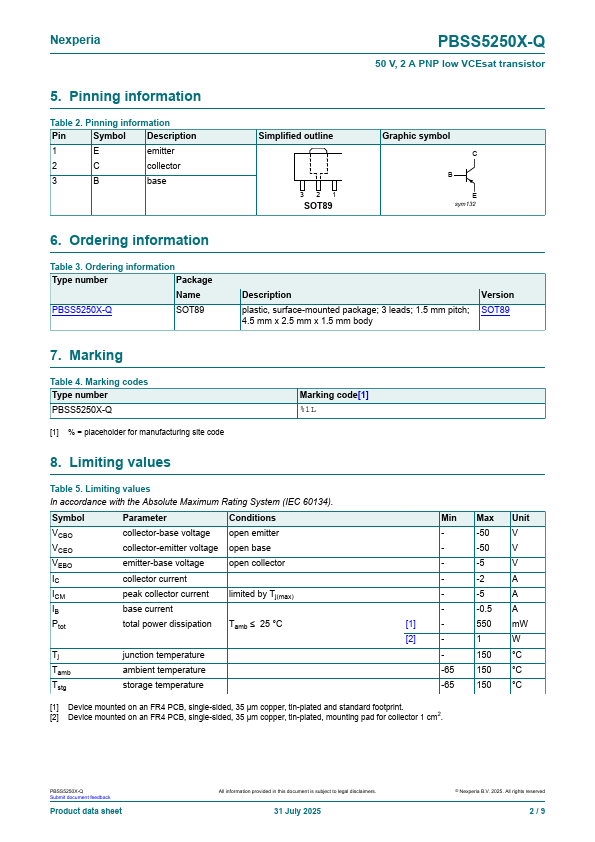

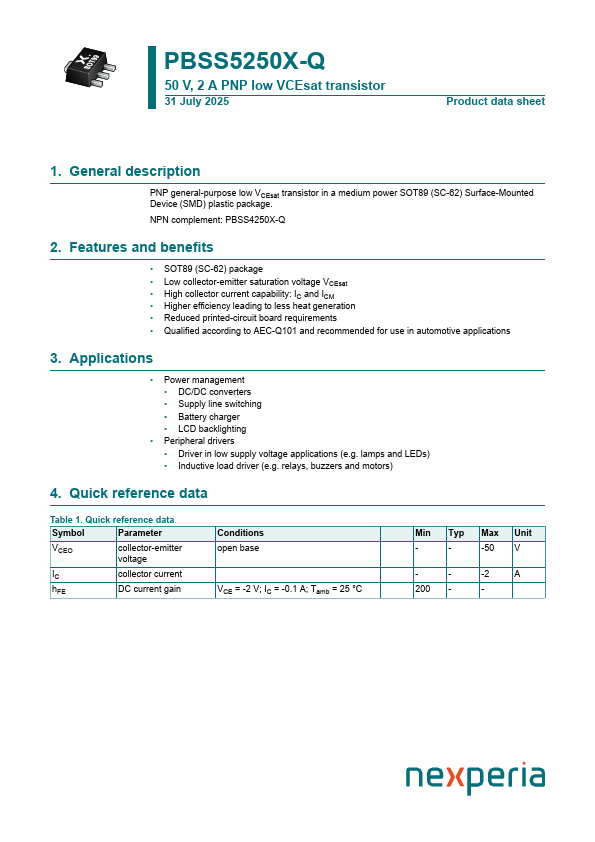

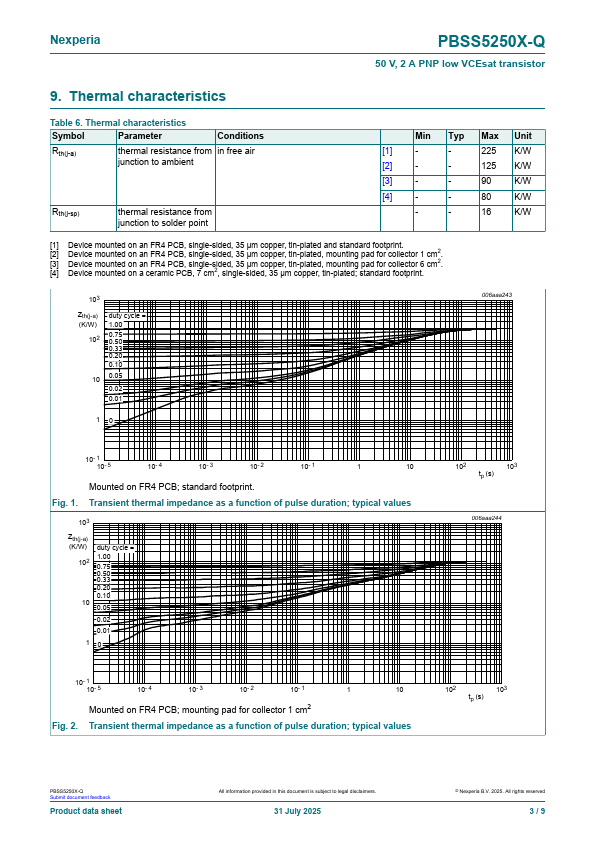

Additional preview pages of the PBSS5250X-Q datasheet.

PBSS5250X-Q Product details

Description

PNP general-purpose low VCEsat transistor in a medium power SOT89 (SC-62) Surface-Mounted Device (SMD) plastic package.

Features

SOT89 (SC-62) package.
Low collector-emitter saturation voltage VCEsat.
High collector current capability: IC and ICM.
Higher efficiency leading to less heat generation.
Reduced printed-circuit board requirements.
Qualified according to AEC-Q101 and recommended for use in automotive.
