PDTC123YMB Datasheet, Transistor, nexperia

PDTC123YMB Features

• Transistor
• 100 mA output current capability
• Reduces component count
• Built-in bias resistors
• Reduces pick and place costs
• Simplifies circuit desig

PDF File Details

Part number:

PDTC123YMB

Manufacturer:

nexperia ↗

File Size:

489.78kb

Download:

📄 Datasheet

Description:

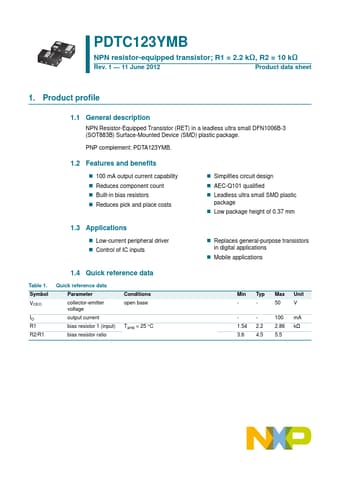

Npn resistor-equipped transistor. NPN Resistor-Equipped Transistor (RET) in a leadless ultra small DFN1006B-3 (SOT883B) Surface-Mounted Device (SMD) plastic package. P

PDTC123YMB Application

• Applications
• Low-current peripheral driver
• Control of IC inputs
• Replaces general-purpose transistors in digital appli
