PESD30VY1BSF Extremely low capacitance bidirectional ESD protection diode 3 June 2025 Short data sheet 1.General .
Very low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS protection family.

📥 Download Datasheet

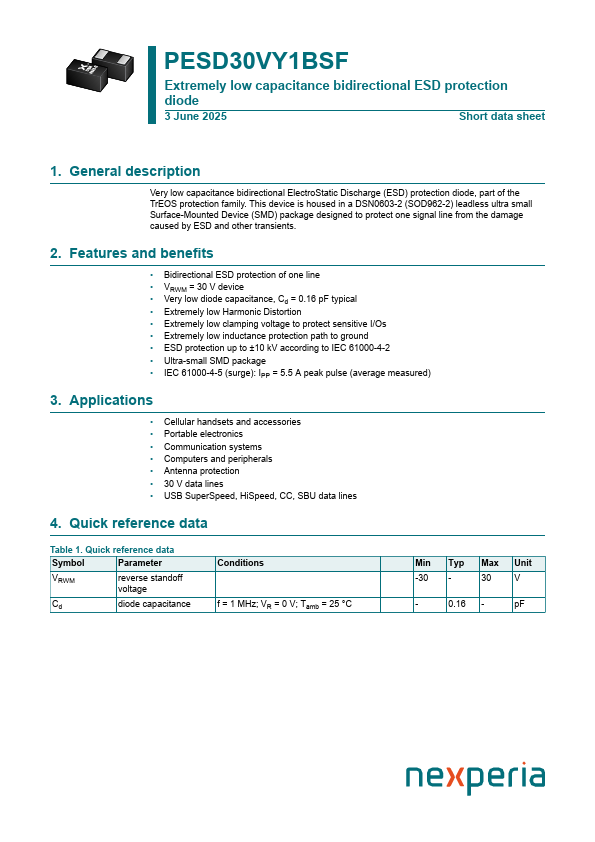

PESD30VY1BSF Datasheet Preview — Preview of PESD30VY1BSF PDF

Datasheet Specifications

Part number: PESD30VY1BSF
Manufacturer: nexperia ↗
File Size: 148.34 KB
Datasheet: PESD30VY1BSF-nexperia.pdf
Description: Extremely low capacitance bidirectional ESD protection diode

Features

* Bidirectional ESD protection of one line
* VRWM = 30 V device
* Very low diode capacitance, Cd = 0.16 pF typical
* Extremely low Harmonic Distortion
* Extremely low clamping voltage to protect sensitive I/Os
* Extremely low inductance protection path

Applications

* Cellular handsets and accessories
* Portable electronics
* Communication systems
* Computers and peripherals
* Antenna protection
* 30 V data lines
* USB SuperSpeed, HiSpeed, CC, SBU data lines 4. Quick reference data Table 1. Quick referen
