PESD5V0L1BSF - Ultra low profile bidirectional low capacitance ESD protection diode

nexperia

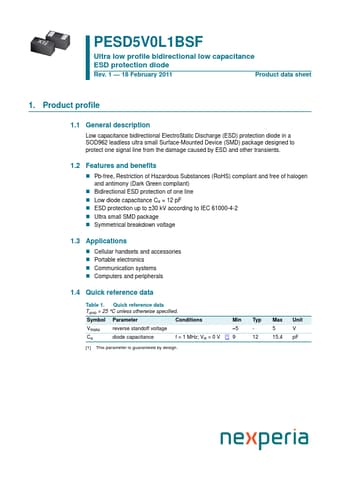

PESD5V0L1BSF Datasheet Preview — Preview of PESD5V0L1BSF PDF

Datasheet Details

Part number	PESD5V0L1BSF
Manufacturer	nexperia ↗
File Size	731.74 KB
Description	Ultra low profile bidirectional low capacitance ESD protection diode
Datasheet	PESD5V0L1BSF-nexperia.pdf

PESD5V0L1BSF Product details

Description

Low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in a SOD962 leadless ultra small Surface-Mounted Device (SMD) package designed to protect one signal line from the damage caused by ESD and other transients.

Features

Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant).
Bidirectional ESD protection of one line.
Low diode capacitance Cd = 12 pF.
ESD protection up to ±30 kV according to IEC 61000-4-2.
Ultra small SMD package.
Symmetrical breakdown voltage 1.3.
