PMEG6050CEP 60V 5A low VF Schottky barrier rectifier

PMEG6050CEP Description

PMEG6050CEP 60 V, 5 A low VF Schottky barrier rectifier 10 March 2025 Objective data sheet 1.General .
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface-Mounted De.

PMEG6050CEP Features

* Low forward voltage
* High power capability due to clip-bond technology
* Small and flat lead SMD plastic package

PMEG6050CEP Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Switch Mode Power Supply (SMPS)
* Reverse polarity protection
* Low power consumption applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF(AV) average f

📥 Download Datasheet

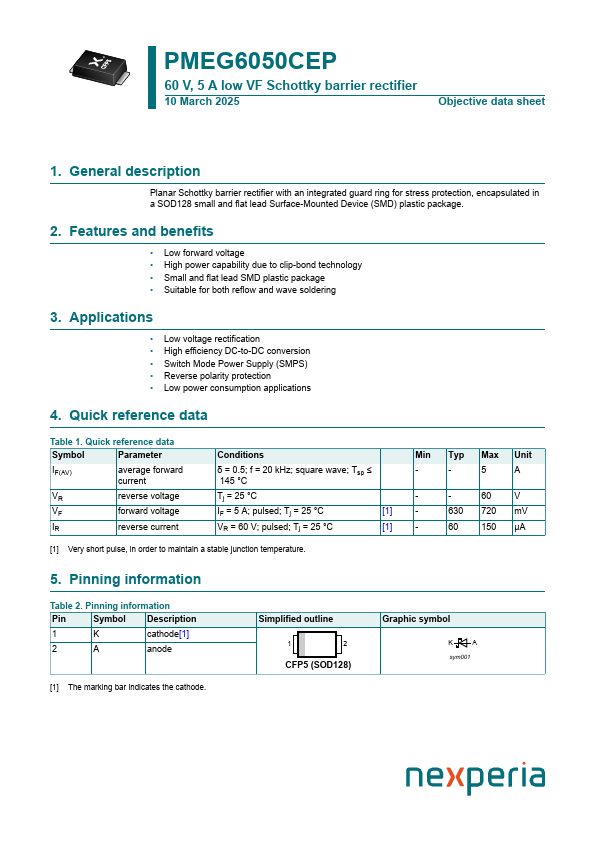

Preview of PMEG6050CEP PDF

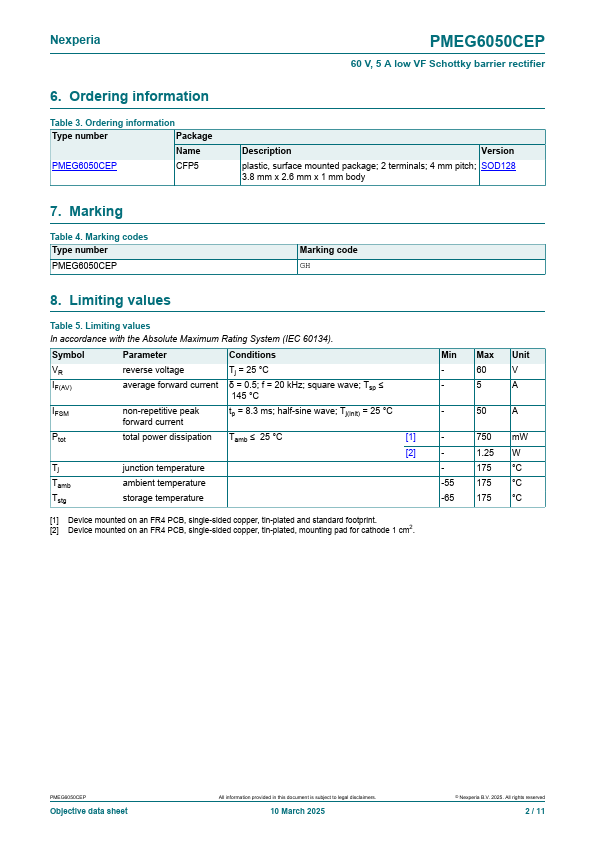

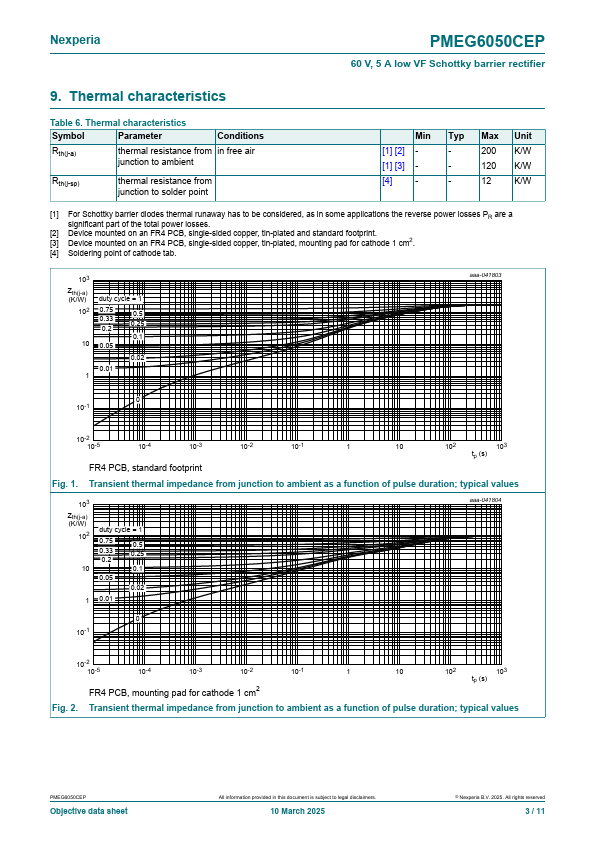

datasheet Preview Page 2 datasheet Preview Page 3
