PMEG6050ELP 60V 5A low leakage current Schottky barrier rectifier

PMEG6050ELP Description

PMEG6050ELP 60 V, 5 A low leakage current Schottky barrier rectifier 10 March 2025 Product data sheet 1.General .
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface-Mounted De.

PMEG6050ELP Features

* Extremely low leakage current
* High power capability due to clip-bonding technology
* High temperature Tj ≤ 175 °C
* Small and flat lead SMD plastic package

PMEG6050ELP Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Switch mode power supply
* Reverse polarity protection
* Low power consumption applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF(AV) average forward

📥 Download Datasheet

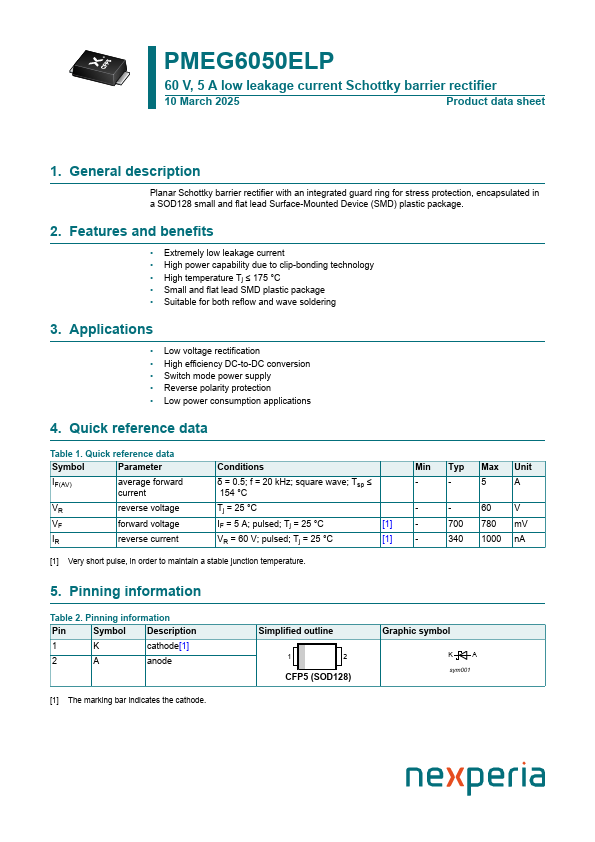

Preview of PMEG6050ELP PDF

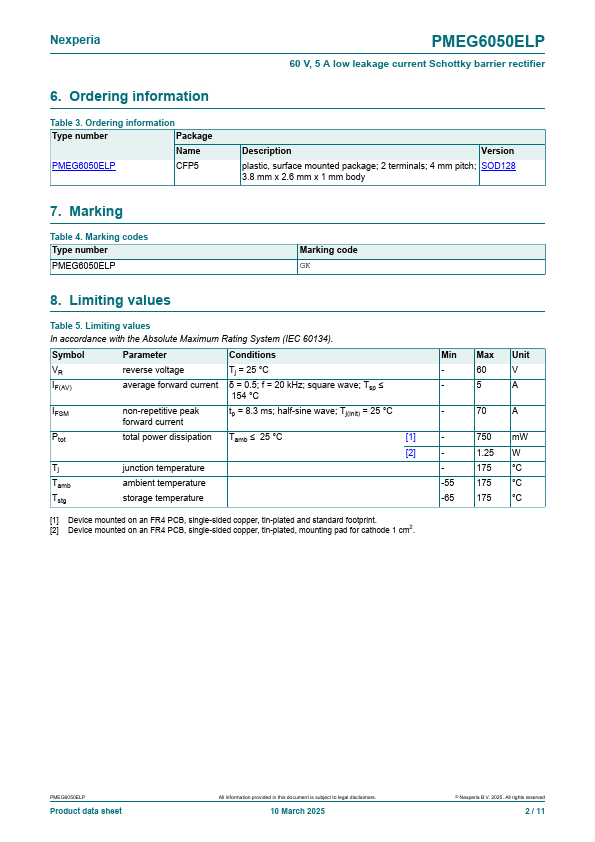

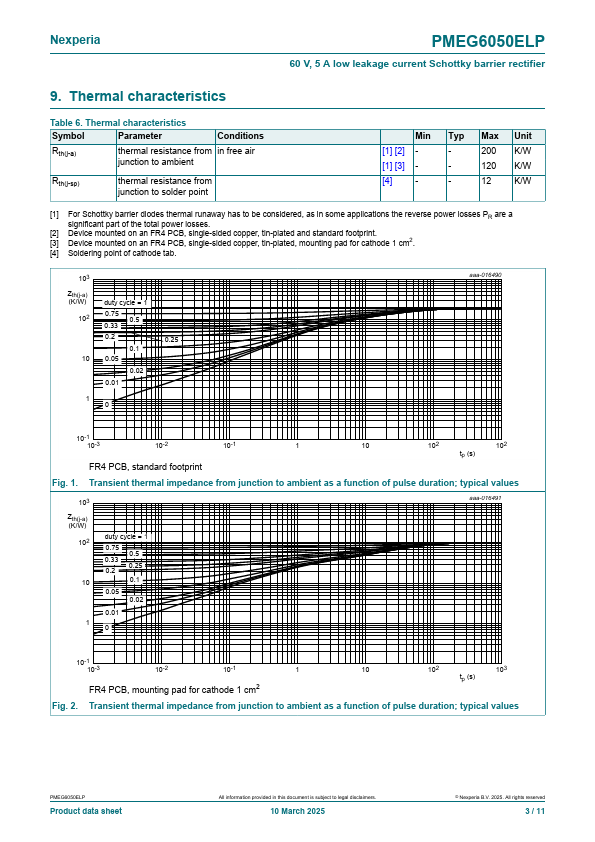

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PMEG6050ELP
Manufacturer
nexperia ↗
File Size
232.49 KB
Datasheet
PMEG6050ELP-nexperia.pdf
Description
60V 5A low leakage current Schottky barrier rectifier
