PUSB3FA0 - ESD protection

nexperia

📥 Download Datasheet

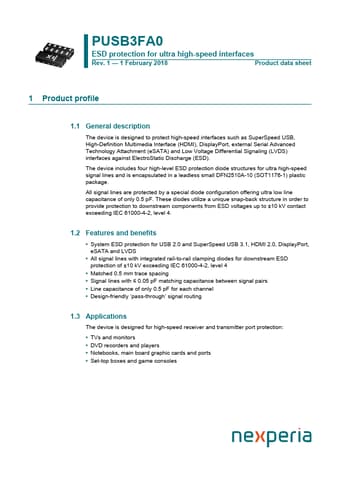

PUSB3FA0 Datasheet Preview — Preview of PUSB3FA0 PDF

Datasheet Details

Part number: PUSB3FA0
Manufacturer: nexperia ↗
File Size: 438.00 KB
Datasheet: PUSB3FA0-nexperia.pdf
Description: ESD protection

PUSB3FA0 Product details

Description

The device is designed to protect high-speed interfaces such as SuperSpeed USB, High-Definition Multimedia Interface (HDMI), DisplayPort, external Serial Advanced Technology Attachment (eSATA) and Low Voltage Differential Signaling (LVDS) interfaces against ElectroStatic Discharge (ESD)..

Features

System ESD protection for USB 2.0 and SuperSpeed USB 3.1, HDMI 2.0, DisplayPort, eSATA and LVDS.
All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of ±10 kV exceeding IEC 61000-4-2, level 4.
Matched 0.5 mm trace spacing.
Signal lines with ≤ 0.05 pF matching capacitance between signal pairs.
Line capacitance of only 0.5 pF for each channel.
Design-friendly ‘pass-through’ signal routing 1.3 Application.
